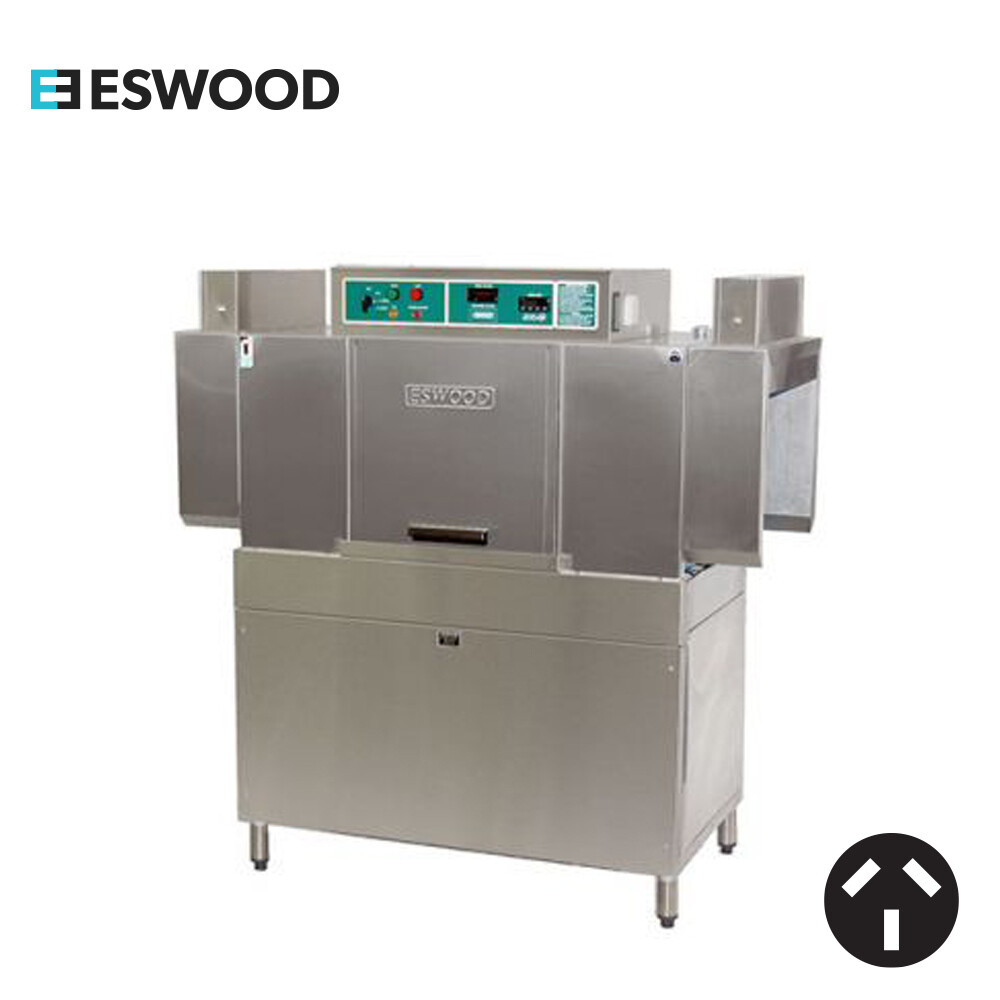

Eswood ES160 | Rack Type Warewashers

Rack Conveyor Warewasher

160 to 175 racks / hour
maximum water consumption 480 litres per hour

STANDARD FEATURES INCLUDE:

• Door safety switches
• Top Mounted Controls and Electrical Control Gear, away from water splash, easy access for Servicing
• Machine operation inter-locked to Rinse Temperature
• Fully panelled front and sides (avoiding water splash to motors etc. when dish wash area is being cleaned)
• Capacity up to 175 racks per hour
• Clutch controlled conveyor (providing protection to drive mechanism if racks jam in machine)
• Low water protection (to wash tank elements)
• Integral rinse booster heater 12 kW
• Wash and rinse elements fitted with individual thermostats
• Rinse economiser (pre-set to provide precise volume of rinse water irrespective of fluctuation in water supply pressure)
• Maximum Water Consumption 480 Litres per hour

OTHER OPTIONS:

• Extension Hoods and Vent Spigots at entry and exit ends
• Angle Feed Unit
• 90 Entry and/or Exit Curves (powered by dishwasher)
• 180 Entry Curve (powered by dishwasher)
• 180 Entry and/or Exit Curves (self-powered)
• 12kW or 15kW High Velocity Blower Dryer
• Heat and Sound Insulating Panels
• Rinse Pressure Booster Pump
• Exit Bench (proximity) Trip Switch pre-wired into control box. This provides automatic shut down whenever exit bench becomes full

Dimensions (WxDxH): 1820 x 730 x 1600 mm
