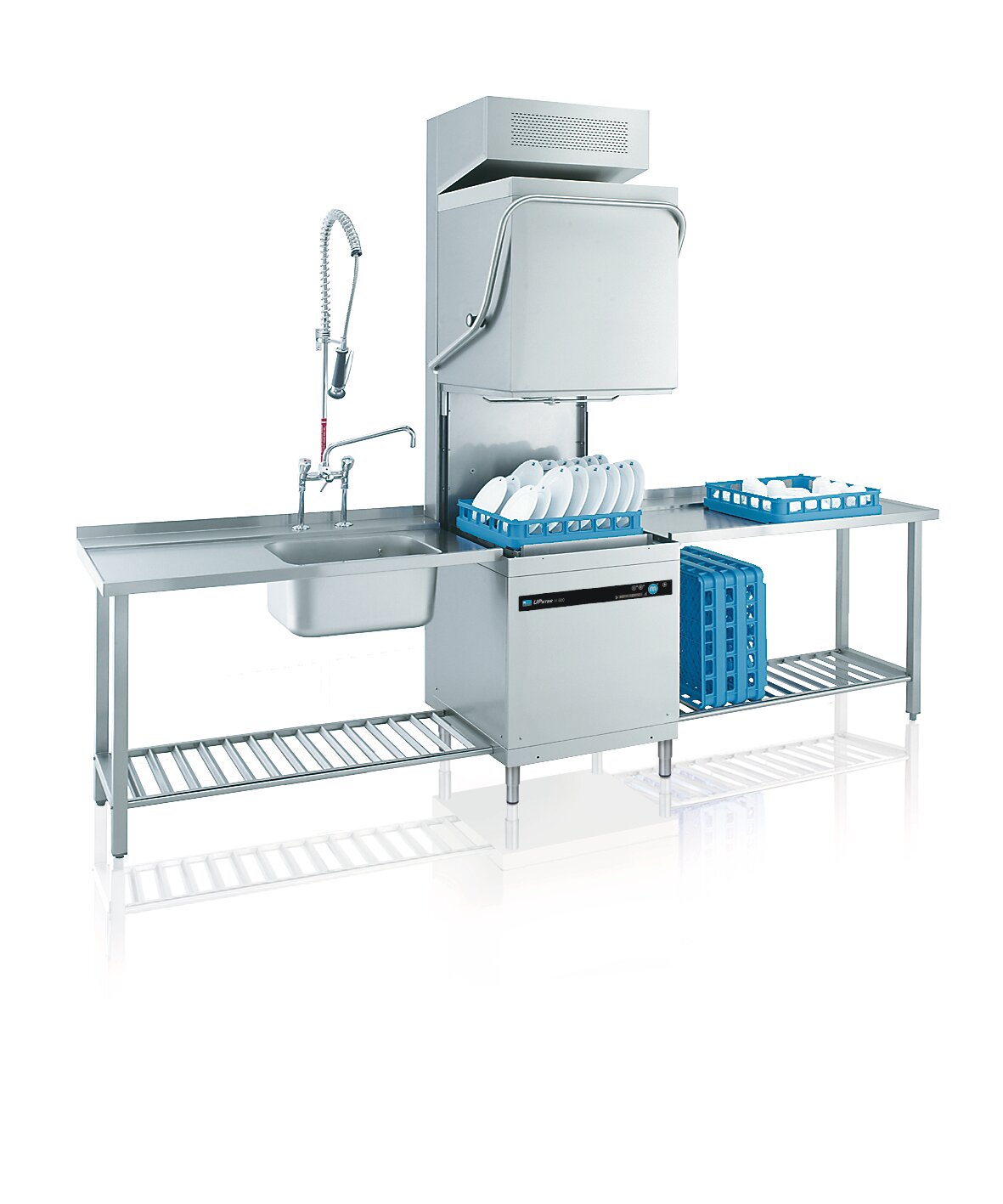

H500 Air Concept Industrial Hood Dishwasher
+2

H500 Air Concept Industrial Hood Dishwasher

SKU H500/Air Concept
$8,903.40
RRP $9,892.30
Price incl. GST (10%) $809.40
1
Product Details
Brand: MEIKO

The automatic start-up on our industrial dishwasher UPster H means it cleans with full convenience as well as full power. Wave goodbye to clouds of steam and poor air quality in the scullery with the power package. Instead, make space for serving dishes, large plates and trays in the dishwasher with a passing height of 440 mm. What more could you want?


The UPster H 500 M1 features pass through technology for even more power and maximum convenience. It offers consistent power and wash convenience at reasonable prices. No clouds of steam when you open the hood of the dishwasher, plus convenient automatic start-up. Thanks to the passing height of 440 mm, the UPster H 500 M1 is great choice for tall washware, too, such as large plates, serving dishes and trays.


Large wash ware such as large plates, platters or trays are no problem for the UPster H 500 M1 industrial dishwasher. They easily fit in without much fuss, no tilting and jugglinginchand are perfectly clean.


The optional AirBox AktivAir won't let the steam escape!


Rack capacity/h (theoretical) - 40 / 24 / 15 racks/h
Programme cycle - * 90 / 150 / 240 s
Rack dimension - 500 x 500 mm (540 x 500)
Entry height - 440 mm
Dimensions (W x Hmin x D) - 635 ( 687) x 2338 x 750 (850) mm (with hood rod)

Electrical feeding cable
- 3-phase current 3N PE 400V 50Hz*
- Total connected load: 8.5 kW
- max. rated current: 17.2 A

Local fuse protection - 20 A
Protection class of the machine - IP X4

Equipment
- Hood start
- MIKE control
- Infrared interface for wireless communication
- Drain pump
- Boiler safety device
- Automatic self-cleaning when tank is drained
- AirBox ActiveAir (vapour treatment)

Fresh water line - Air gap 'AA' in accordance with EN 1717 with booster pump

Fresh water supply
- Minimum flow pressure 60 kPa / 0.6 bar in front of solenoid valve
- Maximum pressure 500 kPa / 5.0 bar
- Max. supply water temperature 60 C

Flow rate - 4 L/min
Final rinse water quantity - 3 liters/cycle

Boiler
- Contents: 10.5 L
- Heater: 7.50 kW
- Temperature: 83 C

Wash tank
- Filling: 22 L
- Heater: 2.00 kW
- Temperature: 60 C

Wash pump - Performance: 0.75 kW
Dosing of rinse aid - Hose pump (24 V) with time control and suction lance
Detergent dosage - Hose pump (24 V) with time control and suction lance

Material
- Cladding: 1.4301
- Wash tank: 1.4301
- Boiler: 1.4404

Heat emission
- for 20 programme cycles/h
- total: 2.1 kW
- perceptible: 1.4 kW
- latent: 0.7 kW

Ventilation flow rate - 540 m//h
Steam emission - 1.0 kg/h
Sound level - 65 dB(A)


* 12 Month Warranty *
