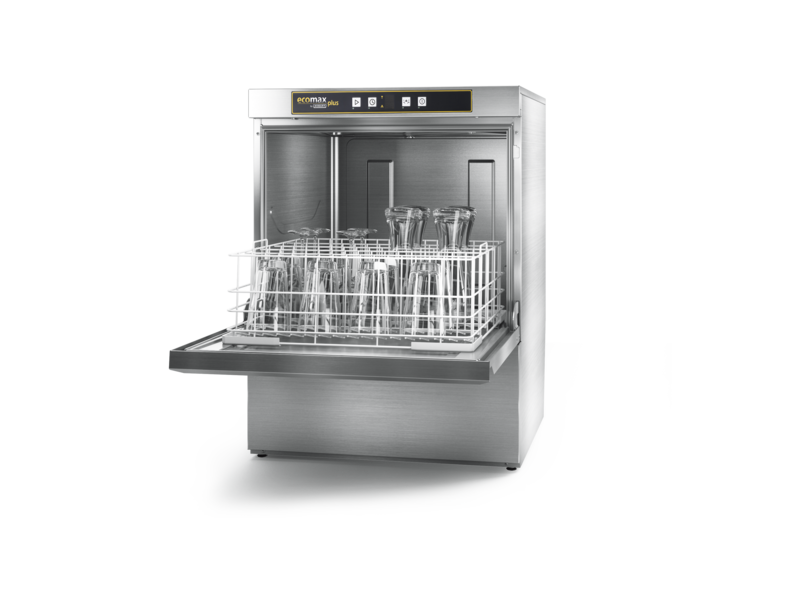

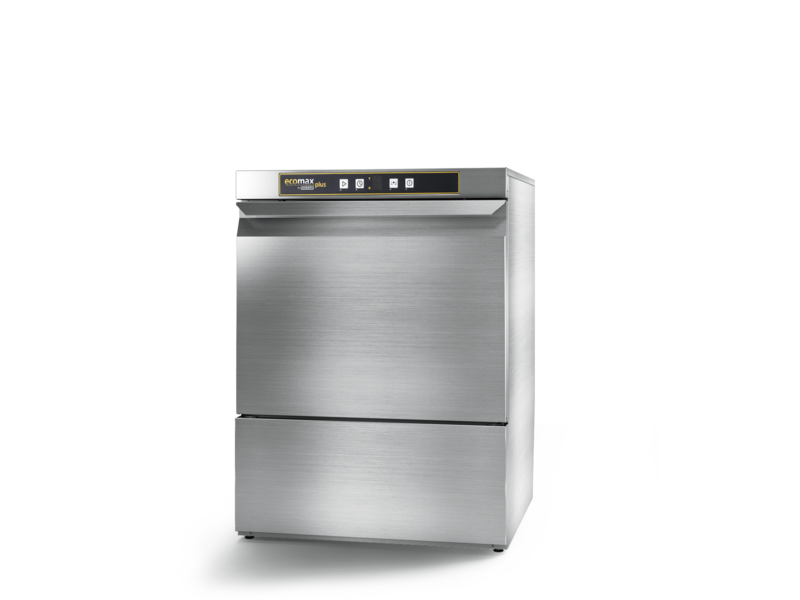

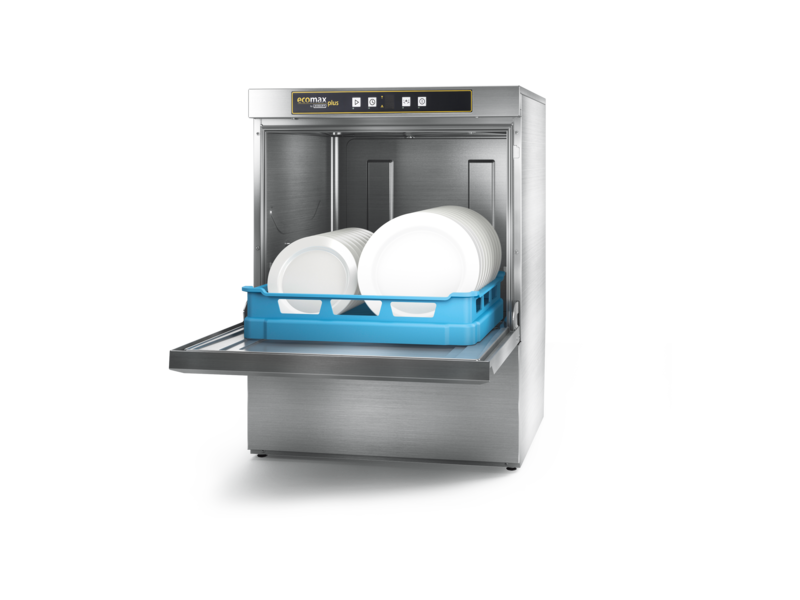

Hobart Ecomaxplus Undercounter Dishwasher
Description:
- Front door glasswasher with optional double rack system
- Nominal capacity up to 60 racks/h or 1080 plates/h or 2160 glasses/h
- Nominal capacity with double rack up to 80 racks/h (40 plate racks + 40 glass/cup racks)
- 3 automatic cycles: 60 / 90 / 180 seconds
- Ready to install - completely equiped: fill / drain hose, power cord (240V connection), detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer
- tank, frame, rinse arm and panel are stainless steel 1.4301
- 1 plate rack P-18-12
- 1 universal rack B-00-07
- 1 cutlery box
Product Features:
HIGH VOLUME undercounter dish and glass washer
LOW VOLUME (10.6litre) single sheet deep drawn wash tank - no welds
EFFICIENT & GUARANTEED - 2.3 litres / cycle water consumption - rinse pump included to guarantee rinse volume, pressure and sanitation results
Electronic control with digital temperature read-out
3 CYCLES: 60 / 90 / 180 secs - Nominal capacity up to 60 racks/h
HEAT AND NOISE INSULATED - double walled construction
Insulated smooth opening counter balanced door
Removable tank strainer, coarse filter and pump suction casing to maximise wash results and reliability
Integrated SELF CLEANING on drain out
Top and bottom rotating wash and rinse arms
Ready to install - equipped with: fill/drain hoses, electrical cable & plug(15amp 240V), detergent & rinse aid dispensers, rinse pump, drain pump, back flow preventer (Watermark approved), adjustable front feet for levelling and castor rear feet for ease of moving for cleaning under
Supplied with 1 off 500 x 500mm plate rack, flat rack and single cutlery container
WATERMARK approved
240 / 50 / 1 - 15amp
(Optional 415/50/3 - additional cost)
TECHNICAL DATA
Cycle Times* | 60 / 90 / 180 seconds |
Water Consumption | 2.3 L/cycle |
Tank Capacity | 10.6 litres |
Power Supply | 240 / 50 / 1 (standard) |
Booster Loading - Standard | 2.1 kW (interlocked) |
Booster Loading - Alternative | 6.2 kW |
Total Loading - Standard | 2.9 kW l 15 A |
Total Loading - Alternative | 7.7 kW l 415/50/3N |
Wash Pump | 0.6 kW |
Rack Size | 500 x 500 mm |
Loading Height | 425 mm |
Noise Level | 60.5 dB (A) |
Weight (gross / net) | 70 / 60 kg |
ACCESSORIES
Order number | Description |
---|---|
RO-S | Small free standing reverse osmosis |
01-515339-001 | Insert for double racking |
01-240349-001 | Cabinet base: 435 mm high, with removable door, stainless steel, |
01-294225-101 | ROI & ROS Replacement carbon pre-filter cartridge |
