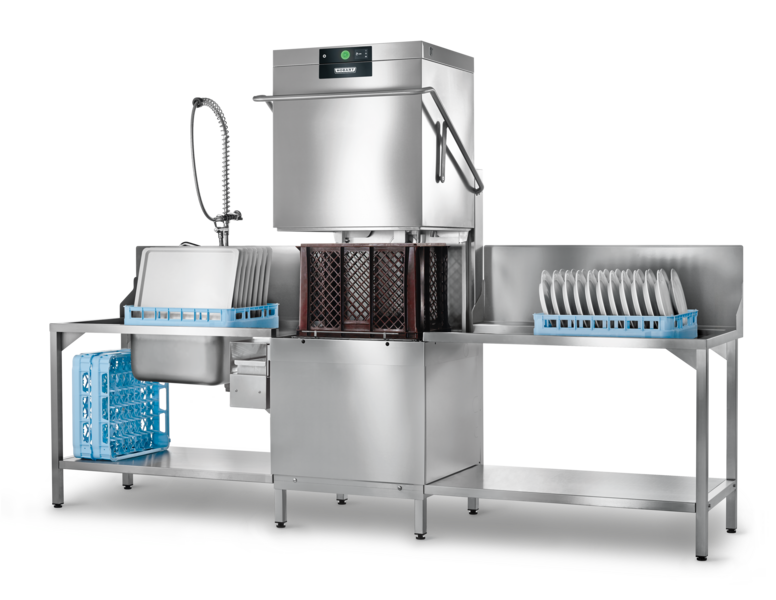

Hobart Premax Dish and Utensil Washer Large
SKU AUPL-VHL
$39,875.00
RRP
$68,750.00
Price incl.
GST (10%) $3,625.00
1
Product Details
Brand:
HOBART
Descriptiom:
- Hood-type dishwasher with switchable high pressure wash for straight through or corner operation
- Nominal capacity up to 70 racks/h, 1,680 plates/h (with optional P-XL rack), 2,520 glasses/h, 560 sheets/h, 140 1/1 GN-boxes/h, 70 EN-boxes/h
- Large chamber with 660 x 500 mm usable space
- Extra large loading height of 540 mm
- 8 automatic cycles: short, standard, intensive, eco, cutlery, starch-removal, permanent, hygiene
- Multi-Setting: booster capacity may be reduced from 12.4 kW to 6.2 kW if connected with hot water
- Heat and noise insulated hood
- Strainer soil sensor
- Refill signal (detergent / rinse aid)
- Self-cleaning programme
- USB-interface for comfortable download of operational data
- Ready to install - completely equipped: fill / drain hose, electrical cable, detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer
- Tank, frame, wash / rinse arms and panels are stainless steel 1,4301
- 1 plate rack P-18-12
- 1 tray rack T-06-09
- 1 cutlery rack C-01-07
Order number | Description |
---|---|
AUPL-VHL | AUPL with VAPOSTOP and AUTO HOOD LIFT |
Product Features:
- PERMANENT-CLEAN automatic soil removal: innovative filter system eliminates manual pre-cleaning. Soil is immediately removed into an external strainer, which saves operating costs and protects the machine.*
- VISIOTRONIC-TOUCH control: colour touchscreen (displays text and graphic) in conjunction with single-button control and remaining cycle time indication
- SMARTCONNECT app: controlling your warewash operation with smart technology: status and messages, usage and operating costs, hygiene, service and consumables order
- XL wash chamber: the large hood and chamber provide best wash results, e.g. for
- up to 24 plates/rack
- up to 8 sheets 600 x 400 mm
- up to 8 trays 660 x 500 mm
- up to 2 1/1 GN-boxes
- SENSO-ACTIVE resource management: constantly measures the quality of the wash water and keeps the amount of rinsing needed in each rinse cycle to the minimum in order to guarantee a fully hygienic wash result.
- Eco programme: switchable steam rinse cycle reduces fresh-water consumption to 1.4 l/cycle. Saving of up to 44 % water and chemicals.
- VAPO-ACTIVE steam washing: significantly less manual pre-cleaning and second runs by intensive wash cycles with steam.
- POWER-PLUS wash programme: selectable high-pressure programme to wash heavily soiled wash items.
- Exhaust energy storage: the fully enclosed 4-sided hood keeps steam and energy inside the system: energy saving up to 3 kW, less humidity in the kitchen area and better hygienic conditions.
- CLIP-IN wash and rinse arms: wash and rinse arms can be removed with one hand and without any tools.
- ROTOR-X wash system: separate rotating upper & lower 4-spoke wash arms deliver dynamic wash power.
- VAPOSTOP (optional): prevents vapour escapingfrom the machine when the hood is opened.
- AUTO-HOOD LIFT (optional): press button to close. Opens automatically at end of cycle.*
- Intelligent energy management: the available energy is used continuously. Thus, at a low total loading value the heating time gets reduced.
- Interlocked strainer: prevents operation without tank strainer.
- EASY-CLEAN concept: blue markings in the machine help the operator to identify the components which require cleaning.
- Watermark approved to WMTS-101:2018, Cert. WMKT21944
* If Auto Hood Lift is included, the ASR must be mounted on the Left Side only.
TECHNICAL DATA
Cycle Times* | 52 / 70 / 170 / 180 seconds |
Water Consumption | 1.4 l/rack |
Tank Capacity | 40 litres |
Tank Heating | 2.5 kW |
Power Supply | 415 / 50 / 3NPE |
Booster Loading - Standard | 12.4 kW |
Booster Loading - Alternative | 6.2 kW |
Total Loading - Standard | 17.5 l 3 x 32 A |
Total Loading - Alternative | 11.3 l 3 x 25 A |
Wash Pump | 2 x 1.1 kW |
Rack Size | 500 x 500 l 600 x 500 mm |
Loading Height | 540 mm |
Noise Level | 67 dB (A) |
Weight (gross / net) | 175 / 155 kg |
ACCESSORIES
Order number | Description |
---|---|
SEF-14/102 | Drain heat recovery for all AUP(L) without integral softener |
SEF-15/055 | Back panel (required if unit is not installed against wall, all units have closing frame to wall at rear) |
T-XL | Tray rack 600 x 500 mm, for 10 GN-trays or 12 trays upto 470 mm length, height 11 cm |
P-XL | Plate rack 600 x 500 mm, for 24 plates up to 240mm or 22 large plates (285mm ), height 11cm |
B-XL | Universal flat rack 600 x 500 mm, with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) |
