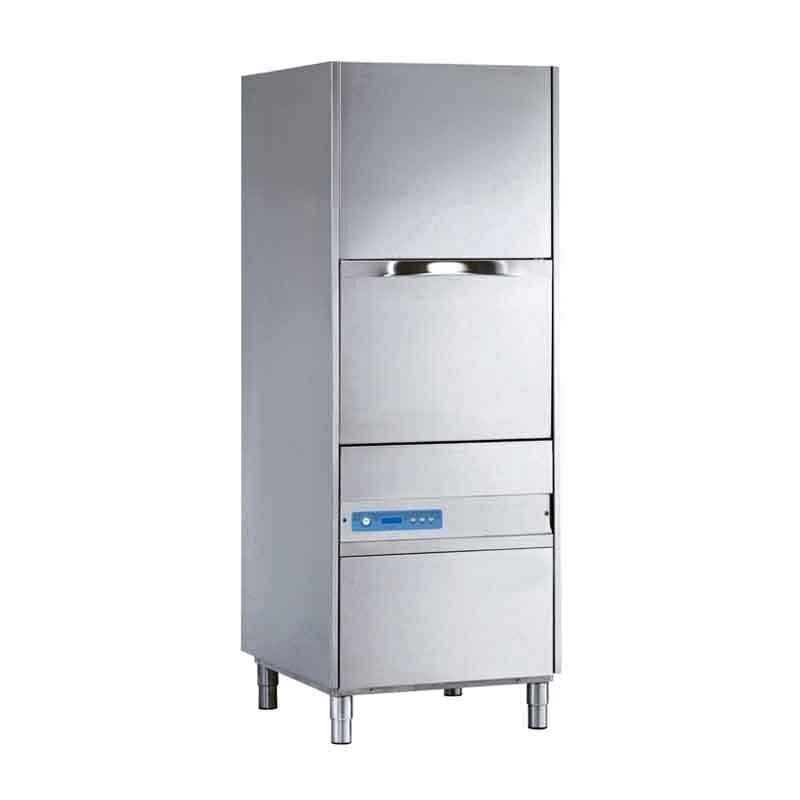

LP1-S8 Plus Pot & Utensil Washer

LP1-S8 Plus Pot & Utensil Washer

SKU LP1-S8 Plus
$11,985.60
RRP $12,485.00
Price incl. GST (10%) $1,089.60
1
Product Details
Brand: RHIMA

With a foot print of 690 x 800mm, the LP1-S8 Plus is Rhima's most popular pot and utensil washer. With a chamber height of 810mm the machine is perfectly suited for most small to medium sized operations. The versatility of the LP1-S8 Plus is endless. Fully programmable with CIP. The internal corners of the double skinned tank are rounded for easy cleaning.


STANDARD FEATURES

Double skinned construction
Deep-formed tank
Independent stainless steel wash & rinse arms
Double tank filter with debris collection system & pump filter
Standard rinse pump
Electronic controls
Four washing cycles
Energy saving
Thermostop to guarantee the rinse temperature to HACCP requirements
Multichromatic start key


TECHNICAL SPECIFICATIONS
Racks/hour (theoretical) - 30/15/10/7.5/6

Cycle time *1 - 120/240/360/480/600
Power supply - 415V,3/+N 50Hz
Wash pump - 2kW
Booster heater - 6kW
Wash tank heater - 3kW
Total power - 8kW
Total current - 3 x 10Amp
Wash tank capacity - 50ltrs
Booster heater capacity - 15ltrs
Water consumption (per cycle) - 4ltrs
Min/max water pressure *2 - 200/600kPa
Min/max water temp *3 - 50/65 C
Rack size - 550 x 665mm
Useful height - 805mm
Max dish height - 820mm
Weight (empty) - 132kg

Drain pump - Optional (min 3ltr/sec)

Water connection - R3/4 hose

Required hot water supply - 120 ltr/hr
Drain hose diameter - 30mm


* / All Machines fitted with thermostop which may may effect cycle time.
* 1/2 Optional booster pump is available if the water pressure is below 200kPa; reducer required if over 600kPa.
* / Minimum incoming water temperature without loss of performance; units can operate with cold water at reduced performance (Optional 8kW cold water booster heater).
- Machine must be connected according to local regulations.


* 2 year warranty *
