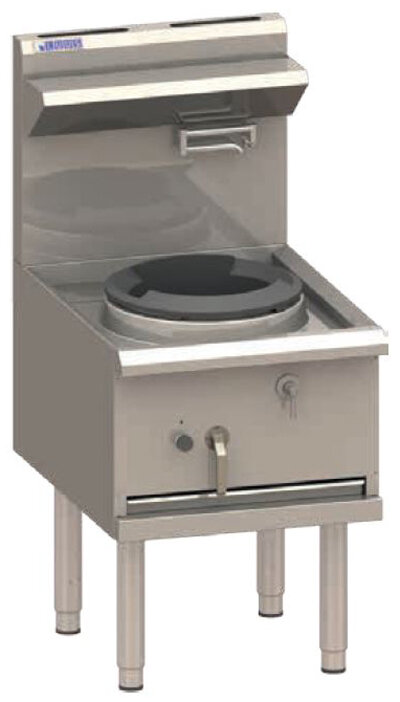

Luus Asian 1 1 Hole Compact 333mm Waterless Wok

SKU WZ-1C

$3,423.75

RRP ~~$4,565.00~~

Price incl. GST (10%) $311.25

Gas Type

Natural

LPG

Burner Type

Chimney

Duckbill

Dual Ring

Quantity:

Product Details

Brand: LUUS ASIAN

Performance meets style in an incredibly compact 800mm deep unit! Ideal where kitchen space is a premium. These feature packed WZ series woks are air cooled, have a one-piece pressed deck, 110mj chimney burners and are available in one, two and three hole configurations with optional side burners. Chimney burners are designed to be run at full strength and not turned down. Turning burner down may lead to incomplete combustion and sooting.

Space saving 800mm total unit depth

333mm wok ring suitable for standard sized woks

Chimney burners ideal for high heat/fast stir frying

Uses up to 90% less water than Traditional Woks

Air gap design eliminates need for water cooling

Machine pressed deck to prevent grime catchment

Concealed ring lip prevents water from entering air gap

Removable, vented rear condiment shelf

Modular design to suit multiple WZ wok units

Optional Duckbill and Dual Ring Burners no additional cost

24 month Platinum Warranty'

Easy to clean and service

Waterless Wok

110 mj 24 jet chimney burners with pilot & FFD

333mm diameter standard size cast-iron wok ring

Air gap cooling system

Quarter turn water control lever

Folding rear laundry arm with front panel controls

Wider front gutter design for easier cleaning

Internal front heat shield panel

Supplied with waste strainer

Zinc-aluminium Alloy burner handles

Overall Construction

Heavy duty construction

Full skirt, enamelled cast-iron rings

1.5mm 304 stainless steel one-piece pressed deck

0.9mm 304 stainless steel condiment shelf

Splashback and front cover 1.2 mm 304 stainless steel

Integrated hob 1.5mm 304 stainless steel

Side panels 1.2mm 304 stainless steel

Undertrays 0.9mm stainless steel

Stainless steel removable legs

30mm height adjustment range

Dimensions

600mm x 800mm x 1300mm H

Working height 800mm

Weight 85kg

Packed dimensions 650mm x 900mm x 1470mm H

Packed weight 110kg

Connections

Gas 3/4 BSP female

Gas 121mm from right, 84mm from rear, 425m to floor

Supplied with gas regulator (specify Nat or LP on order)

Water inlet 1/2 copper tube

Water 61mm from right, 81mm to rear, 408mm to floor

Drain 1 3/4 BSP male, drain outlet 2

Drain 122mm from left, 83mm from rear, 590mm to floor

Cleaning & Servicing

Easy access to all parts & components from front

Options/Accessories

Knee lever timer tap

Replace Chimney burners with Duckbill or Dual Ring burners

250mm and 500mm wide clip on shelves (front)

Wok Holder

Clip On Sauce Holder

Injector Cleaning Tool

Joining caps & strips

RH and LH side shields

Rear castors
