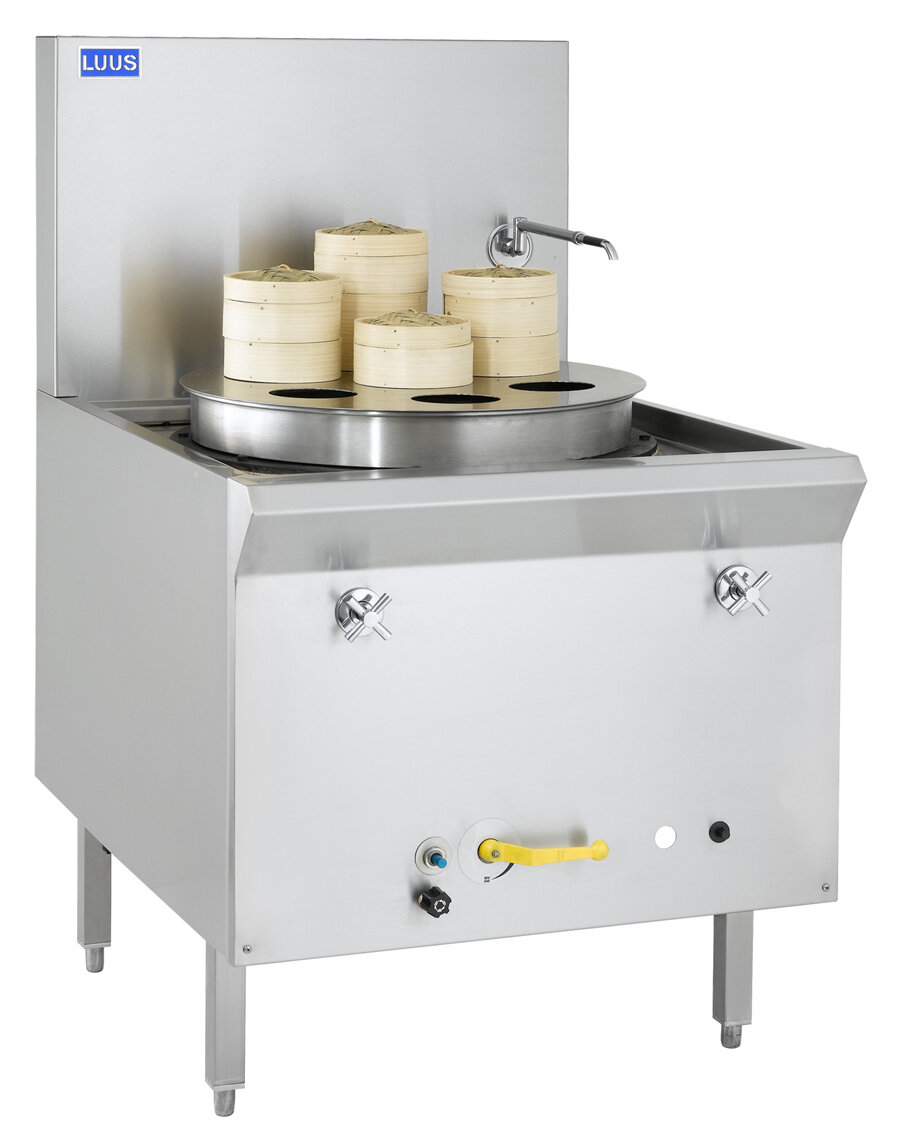

Luus Asian 1 Mongolian Burner Yum Cha Steamer

SKU YC-1
$5,238.75
RRP $6,985.00
Price incl. GST (10%) $476.25
Gas Type
1
Product Details
Brand: LUUS ASIAN
Our range of traditional steamers have been powering Australian yum cha restaurants since 1998! Ideal for steaming high volume of dim sum/cheung fun, each unit comes standard with jet burners, piezo ignition, manual tank refill operation, overflow/drainage systems and manual water cooling (YC-1)

Features:

Powerful Mongolian burner for maximum steam output
7 hole steamer plate suitable for bamboo baskets
Water cooling system to preserve unit longevity
Cast iron ring with Fiberfrax insulation
Durable Zinc-aluminum Alloy burner handle
Laundry arm controlled by quarter turn lever
304 grade high quality stainless steel panels
15 month Platinum Warranty'
Easy to clean and service


Steamer

115mj 32 jet mongolian burner with piezo, pilot & FFD
Water deck cooling system
1.5mm 304 stainless steel 7 hole steamer plate
1.2mm 304 stainless steel pot & skirting
Water deck cooling system
Quarter turn water control lever
Rear laundry arm with front panel controls
Front gutter design for easier cleaning
Zinc-aluminium Alloy burner handle

Overall Construction
Welded steel frame construction
Cast iron ring with Fiberfrax Durablanket insulation
Double flanged watertight gasket seal
Rear flue system to aid combustion
1.2mm 304 stainless steel deck, front cover & splashback
0.7mm 304 stainless steel side panels and undertrays
10mm ceramic insulation board under top deck
25mm Fibertex Rockwool insulation in fron & side panels
38mm stainless steel tube legs with adjustable feet

Dimensions
750mm x 950mm x 1300mm H
Working height 800mm
Weight 112kg
Packed dimensions 830mm x 1025mm x 1460mm H
Packed weight 142kg

Connections
Gas 3/4 BSP male
Gas 100mm from left, 50mm from rear, 300mm from floor (regulator connected inside front cover)
Supplied with gas regulator (specify Nat or LP on order)
Water inlet 1/2 copper tube
Water 100mm from right, 100 mm from rear, 200mm floor
Drain 2 BSP male
Drain 100mm from right, 130mm from front, 650mm floor
Cleaning & Servicing
Easy access to all parts & components from front

Options/Accessories
4 piece 304 stainless steel steam rack set
Joining caps & strips
Rear castors
Extended warranty
