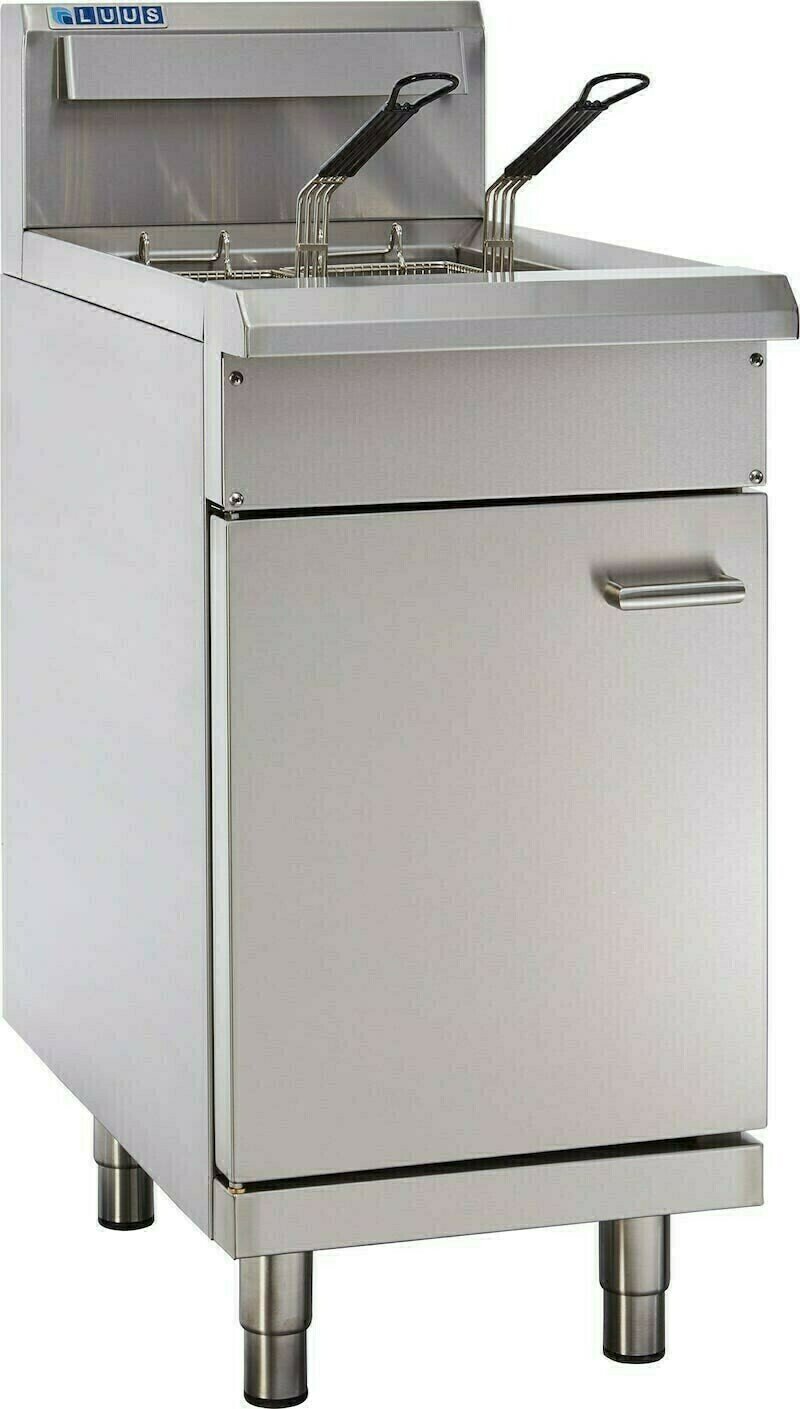

Luus Professional 2 Basket Single V-Pan Fryer

SKU FV-45
$4,620.00
RRP $6,160.00
Price incl. GST (10%) $420.00
Gas Type
1
Product Details
Brand: LUUS
FV series fryers feature an easy to clean stainless steel V-pan tank with a large cool zone. Premium components such as Fenwal thermostats improve accuracy and reliability, while efficient multi-jet burners optimise performance and recovery rates. Available in 450mm and 600mm wide models.


Easy to clean V-pan design with cool zone
High performance burners and recovery rates
Includes pilot, FFD, piezo and high temp cutout
30kg/h production rate
20 litre oil capacity
Cabinet design with internal fryer controls
Supplied with 2 fryer baskets
Modular Professional series design
24 month Platinum Warranty'
Easy control/burner access for servicing


V-Pan Fryer

100MJ/h jet burner with pilot, FFD and piezo ignition
Mechanically controlled thermostat
Thermostat temperature range 100 - 200 C
High temperature cut-out safety mechanism
304 grade 1.5mm stainless steel tank
20 litre tank capacity
Includes 2 stainless steel fryer baskets
0.9mm stainless steel perforated fish/base plate
Tank drainage valve at bottom front of unit

Overall Construction
Heavy duty construction
Constructed 0.9mm 304 stainless steel door
High density Fiberfrax Durablanket insulation around tank
Welded 1.2mm 304 stainless steel front hob
Front and side panels 0.9mm 304 stainless steel
Splashback 1.2 mm 304 stainless steel
Includes stainless steel legs with 55mm adjustable range

Dimensions
450mm x 800mm x 1100mm H
Working height 900mm
Weight 72kg
Packed dimensions 640mm x 860mm x 1260mm H
Packed weight 92kg

Connections
Gas 3/4 BSP male
Gas 225mm from right, 50mm from rear, 210mm from floor
In-built gas regulator (specify Nat or LP on order)
Drain 1 1/4 BSP male
Drain 225mm from left, 70mm from front, 385mm floor

Cleaning & Servicing
Easy access to all parts & components from front
V-pan easy-to-clean design
Rear basket support bar
Removable baskets and inserts

Options/Accessories
Additional fryer baskets
Joining caps
RH and LH side shields
Rear castors
