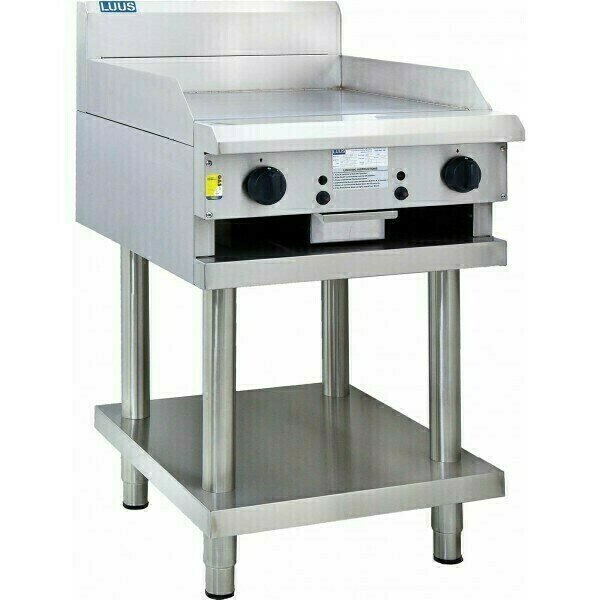

Luus Professional 600mm Griddle - CS-6P

SKU CS-6P
$3,795.00
RRP $5,060.00
Price incl. GST (10%) $345.00
Gas Type
1
Product Details
Brand: LUUS
600mm wide griddle plate and chargrill combinations in a compact 800mm deep body. 21mm mild steel plate with piezo ignition. Available as a benchtop or freestanding with an undershelf storage area.

Dimensions - 600w x 800d x 1100h
Burners - 2 x 18mj stainless steel tube burners
Grill Area - 590mm x 540mm
Mount - Benchtop or on stand with undershelf

CS-6P - 600mm Griddle - 36mj NAT / 36mj LPG
CS-3P3C - 300mm Griddle 300mm Chargrill - 51mj NAT / 51mj LPG


21mm thick mild steel griddle plate

Chrome and ribbed plate finishes optional
Hotplate and chargrill combinations
Available freestanding or as a benchtop model
Modular Professional series design
24 month Platinum Warranty'
Easy to clean and service


Specifications:
Griddle/Hotplate

18 mj/h burners with pilot, FFD and piezo ignition
Variable flame control valve with low flame setting
21mm thick mild steel griddle plate
Top weld sealed hotplate sections
CS-6P plate: 590mm x 540mm; 0.32m2 cooking area
CS-3P3C plate: 290mm x 540mm; 0.16m2 cooking area
2mm 304 stainless steel splash guards
Griddle oil bin 1.2mm stainless steel

Chargrill/Barbecue
33 mj/h burners with pilot, FFD and piezo ignition
Variable flame control valve with low flame setting
Two piece burner with cast-iron heat distributing hood
Optional ceramic rocks for even heat and smokiness
Optional cast iron ceramic rock tray
Heavy duty cast iron diamond' grates 147mm x 540mm
CS-3P3C bbq: 280mm x 520mm; 0.15m2 cooking area
2mm 304 stainless steel splash guards
Chargrill undertray 0.9mm stainless steel

Overall Construction
Heavy duty construction
Welded 1.2mm 304 stainless steel front hob
Front and side panels 0.9mm 304 stainless steel
Splashback 1.2 mm 304 stainless steel
Stainless steel legs with 55mm height adjustment range

Dimensions
600mm x 800mm x 1100mm H
600mm x 800mm x 560mm H (benchtop)
Working height 900mm
Weight 82kg
Connections
Gas 3/4 BSP male
180mm from right, 50mm from rear, 600mm from floor
Benchtop model gas connection: 60mm from bottom
Supplied with gas regulator (specify Nat or LP on order)

Cleaning & Servicing
Easy access to all parts & components from front

Options/Accessories
Rear castors
Joining caps
Ribbed or chrome finish on hotplates
RH and LH side shields
Ceramic rocks (specify when ordering)
Benchtop mount (specify when ordering)
