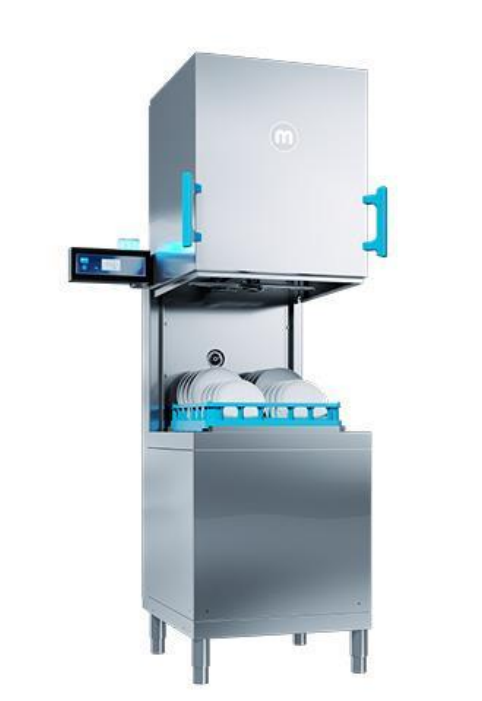

Meiko M-iClean HL AirConcept - Dishwasher

SKU M-iClean HL AirConcept
$30,732.24
RRP $34,147.30
Price incl. GST (10%) $2,793.84
1
Product Details
Brand: MEIKO

Product Description:

Easier to work with, reduced wash cycle times, improved indoor climate and outstanding washing and drying results, the Meiko M-iClean HL AirConcept is equipped with the same features as the standard model, with the added bonus of the Point2 AirConcept system - providing clean air and superb energy efficiency.

The innovative air management solution provides the very best in exhaust heat recovery. Instead of being released in the room, the hot steam is fed back into the machine as part of the heat recovery process. This tangibly reduces emissions and improves the indoor climate, making for a much more pleasant work environment.

Features:

Dishwasher

  • Automatic hood systemOpens and closes the hood automatically
  • Liquid detergent dosing unit with suction lance for use with customer's existing containers
  • Rinse aid dosing unit with suction lance for use with customer's existing containers
  • M-iClean filter active filter system
  • Combined wash and rinse arms made of stainless steel
  • Dosing and ascending pipes made of stainless steel
  • Rear cladding made of stainless steel
  • Booster pump / drain pump
  • M-iClean signal concept
  • Leakage detection system
  • Foldable rack holder
  • Connection kit (supply hose/drain hose/ electrical cable; each of which extends 1.8 m from the machine)
  • Cold water connection (CW) or hot water connection from 45 C (HW)

Specifications:

  • DEPTH: 800mm
  • WIDTH: 825mm
  • HEIGHT: 2285mm
  • WEIGHT: 190kg
  • POWER TYPE: 3 Phase 20 Amp

Technical Data:

Rack capacity/h (theoretical): 60 / 40 / 17 racks/h
Programme cycle time: 60 / 90 / 210 s
Rack dimension: 500 x 500 mm (650 x 500 mm)
Entry height: 560 mm
Dimensions (W x Hmin x D): 735 ( 825) x 1625 x 750 (800) mm (with handles)
Electrical feeding cable: - 3-phase current 3N PE 400V 50Hz*
- Total connected load: 10.0 kW
- max. rated current: 16.3 A
Local fuse protection: 20 A
Protection class of the machine: IP X5
Equipment: - Control system MIKE CPU4
- Bluetooth interface for wireless communication
- Leakage detector
- Boiler safety device
- Automatic self-cleaning when tank is drained
- Drain pump
- Back wall cladding
- Power Wash
- Automatic hood system
Fresh water line: Air gap 'AB' in accordance with EN 1717 with booster pump
Fresh water supply: - Minimum flow pressure 60 kPa / 0.6 bar in front of solenoid valve
- Maximum pressure: 500 kPa / 5.0 bar
- Max. supply water temperature 60 C

Flow rate: 5 l/min

Final rinse water quantity: 3.0 liters/cycle, variable

Boiler: - Contents: 10.5 l
- Heater: 8.00 kW
- Temperature: 83 C
- Tank / boiler locked
Wash tank: - Filling: 22.0 l
- Heater: 4.00 kW
- Temperature: 60 C
Wash pump, with frequency converter: Performance: 1.50 kW
Dosing of rinse aid: - Hose pump (24 V) with time control and suction lance
Detergent dosage: Hose pump (24 V) with time control and suction lance
Material: - Cladding: 1.4301
- Wash tank: 1.4301
- Boiler: 1.4571
Heat emission: - for 25 programme cycles/h
- total: 2.7 kW
- perceptible: 1.8 kW
- latent: 0.9 kW
Ventilation flow rate: 680 m //h
Steam emission: 1.3 kg/h
Emission sound pressure level at the workplace (LpA): 62 / 64 / 67 dB
Net / gross weight :170.0 kg / 210.0 kg (standard packaging)
Packaging dimensions (W x H x D): 1000 x 1800 x 1000 mm (standard packaging)
