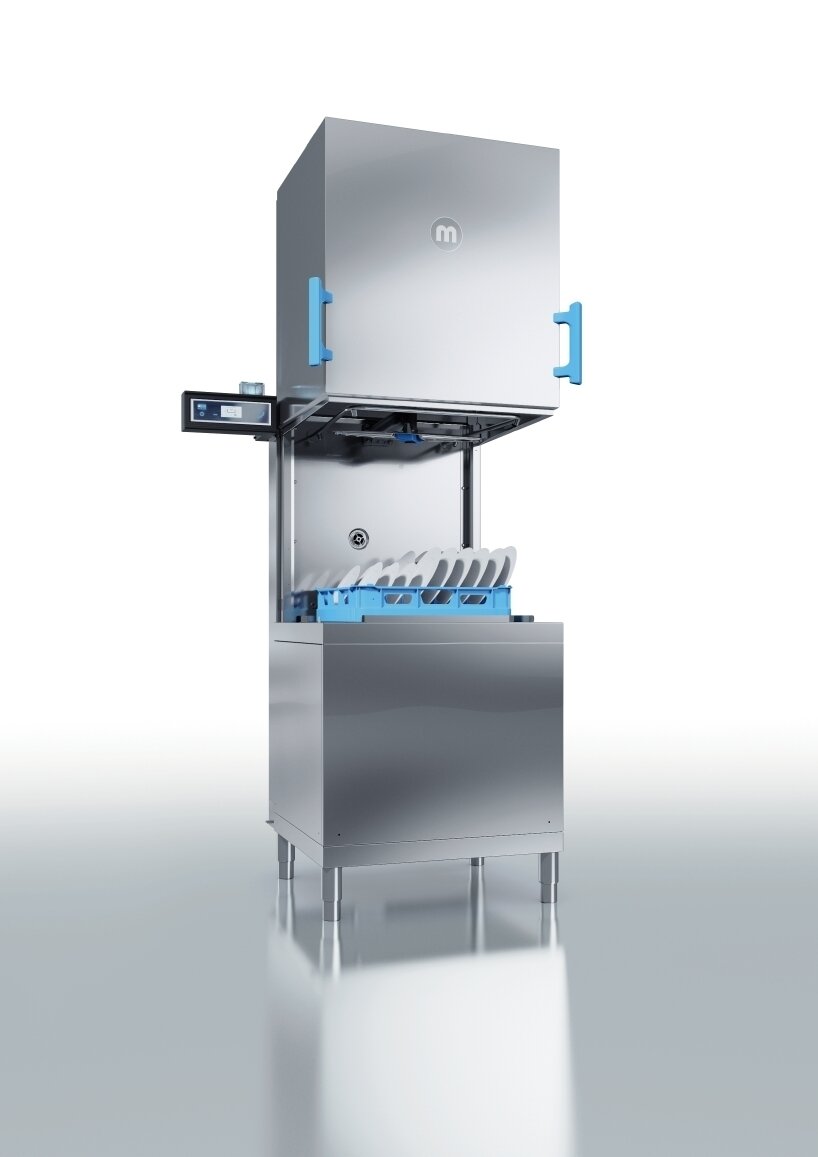

Meiko M-iClean HL Pass Through Dishwasher

This commercial pass through dishwasher, with an entry height of 560 mm and a rack size of up to 650 x 500 mm, loosely places washware under the automatic hood. It provides you with ergonomic operation, less steam, and optimum washing and drying results.

M-iClean HL offers plenty of power to tackle dirty dishes but is gentle on the environment. It features innovative technology and top marks for speed and hygiene. It washes dishware, racks, pots, and bulky items cleanly and effortlessly with PowerWash as a standard feature. And do not forget the hood itself! A gentle touch is all it takes to quickly open and close it. Our new ergonomic concept saves time and costs. Save up to 30 minutes of wash cycle time per day and drying is also significantly quicker.

The M-iClean HL pass through dishwasher is the ultimate benchmark for user-friendly, ergonomic operation, cleanliness and efficiency: shorter cycle times, faster drying and lower staff costs.

- Automatic hood operation with basket detection as standard. Hood closes once wash basket enters the machine and opens at the end of cycle.
- Touch TFT colour display made from hygienic safety glass with program progress indicator and Bluetooth interface that can be mounted on the left or right of hood or elsewhere in the wash area
- Intuitive operation-blue operating concept, components that need checking after self-clean cycle are blue in colour
- M-Clean filter-active filter system for removal of food debris from wash tank (includes monitoring of correct positioning and function)
- Stainless steel detergent and rinse aid lines with in the body of the machine
- Stainless steel single piece wash and rinse arms to improve wash result
- Stainless steel wash and rinse manifold for longevity and reliability

Optional Features
- GiO Reverse Osmosis
- Drying Table
- Air Concept

Working direction: right - left

Electrical feeding cable
- 3-phase current 3N PE 400V 50Hz*
- Total connected load: 9.8 kW
- max. rated current: 16.3 A

Equipment
- Control system MIKE-CPU4
- Bluetooth interface for wireless communication
- Leakage detector
- Boiler safety device
- Automatic self-cleaning when tank is drained
- Drain pump
- back wall cladding
- Power Wash
- Automatic hood opening
- Automatic basket detection

Fresh water line
- Air gap 'AA' in accordance with EN 1717 with booster pump
- Minimum flow pressure 60 kPa / 0.6 bar in front of solenoid valve
- Maximum pressure 500 kPa / 5.0 bar
- Max. supply water temperature 60 C

Boiler
- Contents: 10.5 L
- Heater: 8.00 kW
- Temperature: 83 C

Wash tank
- Filling: 22.0 L
- Heater: 4.00 kW
- Temperature: 60 C

Material
- Cladding: 1.4301
- Wash tank: 1.4301
- Boiler: 1.4571

Heat emission
- for 25 programme cycles/h
- total: 2.7 kW
- perceptible: 1.8 kW
- latent: 0.9 kW

*12 month warranty *
