Meiko M-iClean HM Pass Through Dishwasher

SKU M-iClean HM

$21,052.68

RRP ~~$23,392.60~~

Price incl. GST (10%) $1,913.88

Quantity:

Product Details

Brand: MEIKO

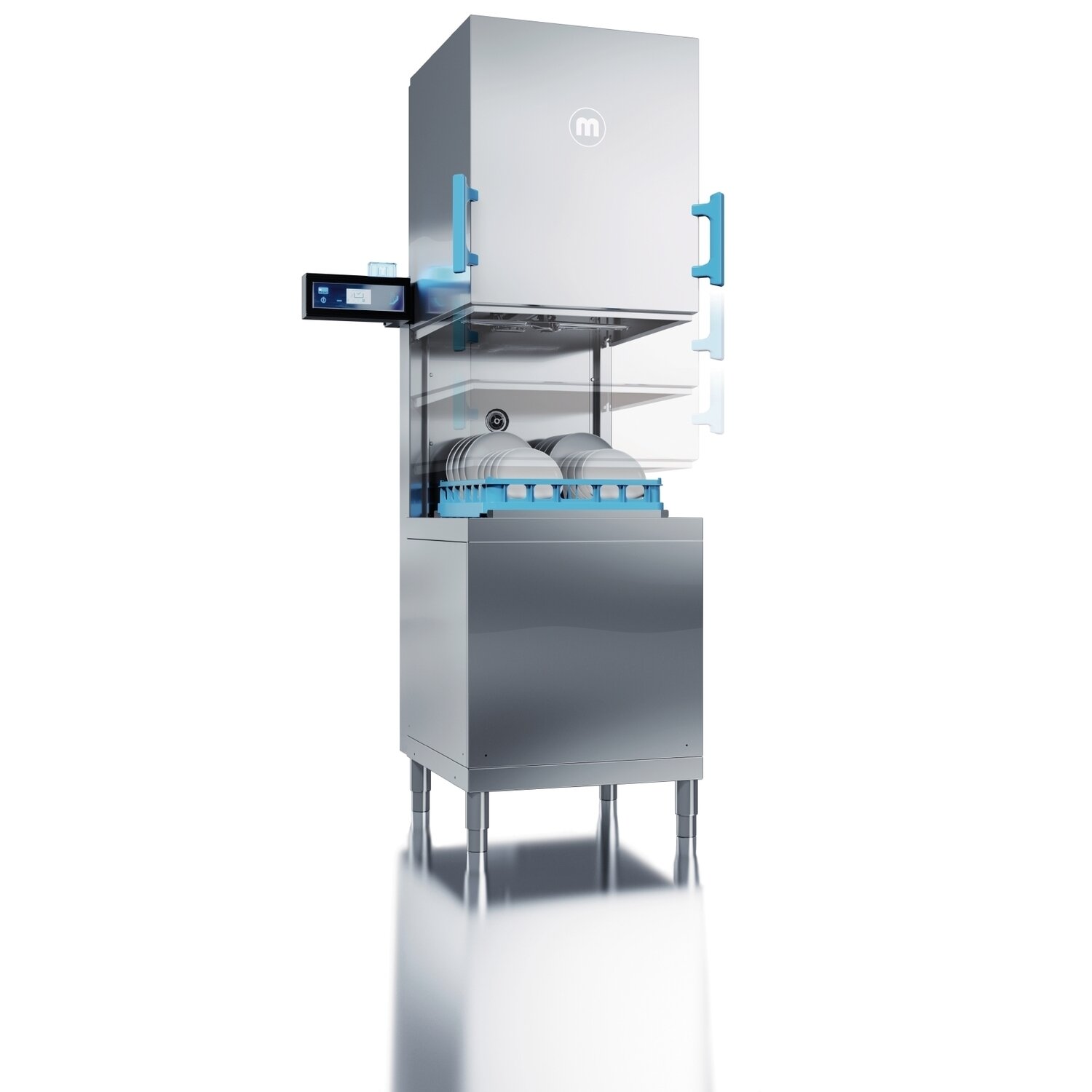

A gentle tap and the hood opens and closes as if by magic. No physical effort required at all, it's like dishwashing paradise! Due to its passing height of 505 mm and rack size of 500 x 500 mm, the M-iClean HM commercial pass through dishwasher is ideal for bulky washware. The automatic hood system reduces the staff's workload and saves time - up to 30 minutes per wash day.

The hood dishwasher M-iClean HM offers the most comfortable and user-friendly experience ever. And its superb ergonomics go hand in hand with a range of great features that save you time and money. Reduce the time it takes to get your dishwashing done by up to 30 minutes a day and enjoy significantly faster drying times thanks to the drying table with integrated blower, plus it helps cut your staff costs and running costs, too! What's more, the hood dishwasher M-iClean HM creates a great atmosphere in the wash-up area by reducing the amount of steam released from the machine by up to 80 percent and, with the PureEnergy package, cutting energy consumption by up to 21 percent.

Rack capacity/h (theoretical) - 60 / 40 / 17 racks/h

Programme cycle - 60 / 90 / 210 s

Rack dimension - 500 x 500 mm (540 x 500 mm)

Entry height - 505 mm

Electrical feeding cable
- 3-phase current 3N PE 400V 50Hz*
- Total connected load: 9.1 kW
- max. rated current: 15.9 A

Local fuse protection - 20 A

Protection class of the machine - IP X5

Equipment
- Control system MIKE-CPU4
- Bluetooth interface for wireless communication
- Leakage detector
- Boiler safety device
- Automatic self-cleaning when tank is drained
- Drain pump
- back wall cladding
- Automatic hood opening
- Automatic basket detection

Fresh water line
- Air gap 'AA' in accordance with EN 1717 with booster pump
- Minimum flow pressure 60 kPa / 0.6 bar in front of solenoid valve
- Maximum pressure 500 kPa / 5.0 bar
- Max. supply water temperature 60 C

Final rinse water quantity - 2.4 liters/cycle, variable

Boiler
- Contents: 10.5 L
- Heater: 8.00 kW
- Temperature: 83 C

Wash tank
- Filling: 22.0 L
- Heater: 4.00 kW
- Temperature: 60 C

Wash pump - Performance: 0.75 kW

Dosing of rinse aid - Hose pump (24 V) with time control and suction lance

Detergent dosage - Hose pump (24 V) with time control and suction lance

Material
- Cladding: 1.4301
- Wash tank: 1.4301
- Boiler: 1.4571

Heat emission
- for 25 programme cycles/h
- total: 2.7 kW
- perceptible: 1.8 kW
- latent: 0.9 kW

Ventilation flow rate - 680 m //h

Steam emission - 1.3 kg/h

* 12 month warranty *
