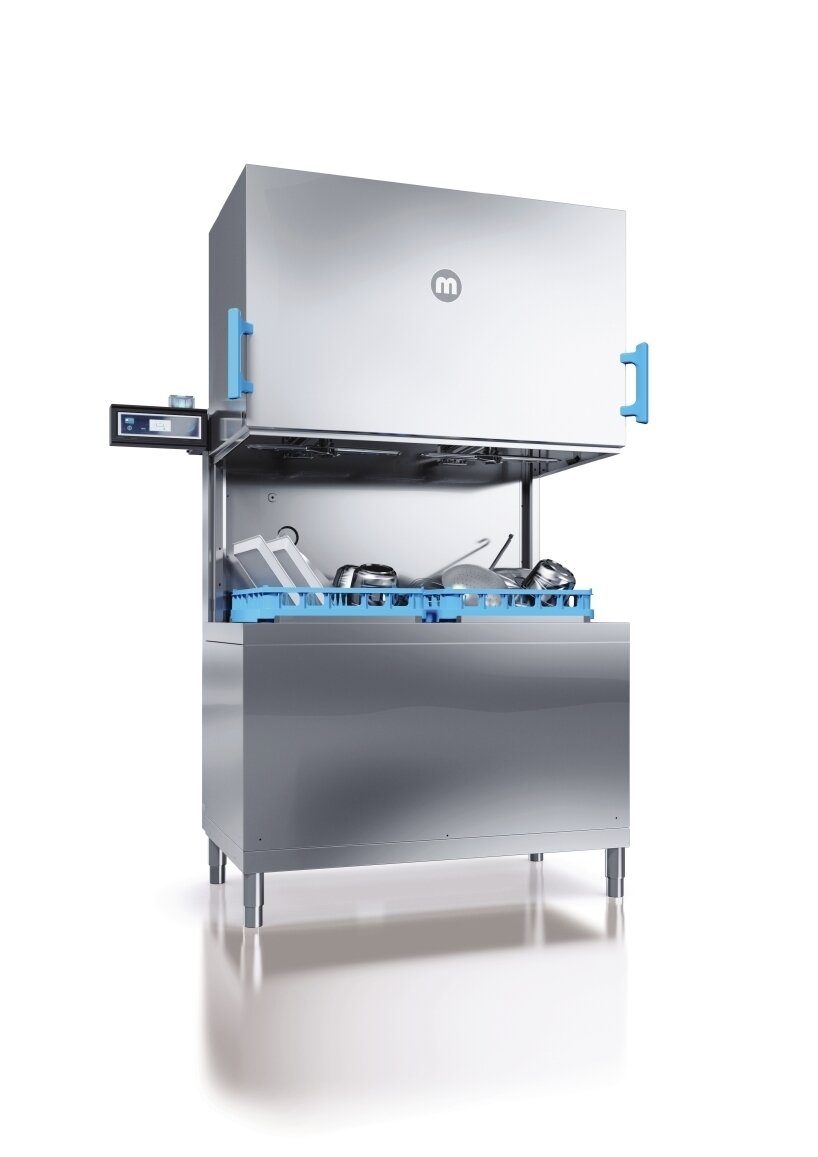

Meiko M-iClean HXL Pass Through Dishwasher

The M-iClean HXL pass through dishwasher is the ultimate benchmark for user-friendly, ergonomic operation, cleanliness and efficiency: shorter cycle times, faster drying and lower staff costs. When big is not big enough, the M-iClean HXL double hood type dishwashing machine manages more thanks to its two 500 x 500 mm racks. With the automatic hood, using it is effortless play despite its size. This feature makes your work easier, shortens wash cycle time, and achieves sparkling results.

The passing height of 505 mm means that it can comfortably handle large and bulky washware. That is how the double hood type dishwashing machine gets pots, pans and trays washes with no problem. The M-iClean HXL features a double hood and, yes, it is heavy, but the machine makes such light work of moving it that you do not break a sweat. The M-iClean HXL is all about time savings and efficiency.

- Automatic hood operation with basket detection as standard. Hood closes once wash basket enters the machine and opens at the end of cycle.
- Touch TFT colour display made from hygienic safety glass with program progress indicator and Bluetooth interface that can be mounted on the left or right of hood or elsewhere in the wash area
- Intuitive operation-blue operating concept, components that need checking after self-clean cycle are blue in colour
- M-Clean filter-active filter system for removal of food debris from wash tank (includes monitoring of correct positioning and function)
- Stainless steel detergent and rinse aid lines with in the body of the machine
- Stainless steel single piece wash and rinse arms to improve wash result
- Stainless steel wash and rinse manifold for longevity and reliability

Optional Features
- GiO Reverse Osmosis
- Active Air self-venting canopy
- Drying Table

Rack capacity/h (theoretical) - 120 / 80 / 34 racks/h

Electrical feeding cable
- 3-phase current 3N PE 400V 50Hz*
- Total connected load: 20.1 kW
- max. rated current: 31.0 A

Local fuse protection - 32 A

Equipment
- Control system MIKE-CPU4
- Bluetooth interface for wireless communication
- Leakage detector
- Boiler safety device
- Automatic self-cleaning when tank is drained
- Drain pump
- Back wall cladding
- Automatic hood opening
- Automatic basket detection

Fresh water supply
- Minimum flow pressure 60 kPa / 0.6 bar in front of solenoid valve
- Maximum pressure 500 kPa / 5.0 bar
- Max. supply water temperature 60 C

Boiler
- Contents: 18.0 L
- Heater: 18.00 kW
- Temperature: 83 C
- Tank / boiler locked

Wash tank
- Filling: 54.0 L
- Heater: 8.00 kW
- Temperature: 60 C

Material
- Cladding: 1.4301
- Wash tank: 1.4301
- Boiler: 1.4571

Heat emission
- for 25 programme cycles/h
- total: 5.4 kW
- perceptible: 3.6 kW
- latent: 1.8 kW

*12 month warranty *
