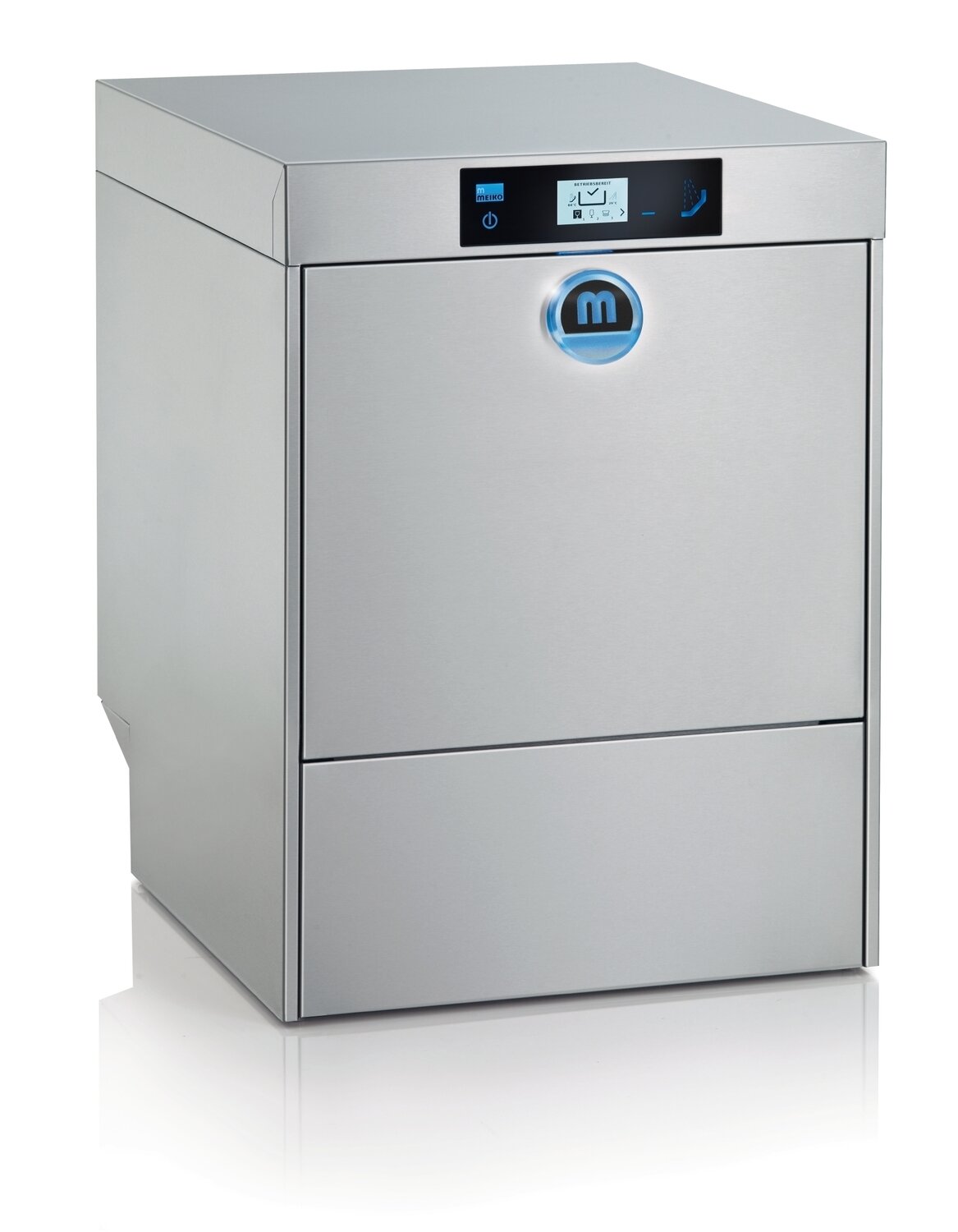

Meiko M-iClean UL Undercounter Glasswasher / Dishwasher

The large version of the M-iClean dishwashing machines for food service offers maximum performance: with a rack size of 600 x 400 mm, even washing crates, GN containers and trays is no problem. The GiO MODULE and heat recovery ensure a more pleasant indoor climate and spotless washing results.

With a size of 600 x 820 mm and a depth of 680 mm, this dishwashing machine for food service is also ideal for butcher's shops and bakeries, where it can handle even bulky washware. The smart LED indicator handle and display are a real eye-catcher. And best of all, despite these dimensions and performance, you enjoy energy savings of up to 21%*. The ComfortAir heat recovery system makes this possible. So big and yet so economical!

The new generation of M-iClean U glass washers and dishwashers offers the full range of innovative warewashing technology in a compact and elegant design.

- High visual handle with LED illumination and colour-coded status
- Touch TFT colour display made from hygienic safety glass with program progress indicator and Blutooth interface
- Intuitive operation-blue operating concept, components that need checking after self-clean cycle are blue in colour
- Interior lights up when door is opened
- M-Clean filter-active filter system for removal of food debris from wash tank (includes monitoring of correct positioning and function)
- Stainless steel detergent and rinse aid lines within the body of the machine
- Stainless steel single piece wash and rinse arms to ensure dirty wash water does not drip onto clean wears
- Pressure adjustable wash pump at a push of a button. Low pressure for washing the most delicate glassware, higher pressure for washing coffee cups, saucers etc.

Optional Features
- Stainless Steel Cupboard
- Air Concept heat recovery system

Electrical feeding cable
- Alternating current 1N PE 230V 50Hz*
- Total connected load: 2.7 kW
- max. rated current: 14.0 A

Equipment
- Control system MIKE-CPU4
- Bluetooth interface for wireless communication
- Leakage detector
- Soft start
- Boiler safety device
- Automatic self-cleaning when tank is drained
- Roller base 35 mm

Fresh water supply
- Minimum flow pressure 60 kPa / 0.6 bar in front of solenoid valve
- Maximum pressure 500 kPa / 5.0 bar
- Max. supply water temperature 60 C

Boiler
- Contents: 7.9 L
- Heater: 2.00 kW
- Temperature: 83 C
- Tank / boiler locked

Material
- Cladding: 1.4301
- Wash tank: 1.4301
- Boiler: 1.4571

Heat emission
- for 20 programme cycles/h
- total: 2.1 kW
- perceptible: 1.4 kW
- latent: 0.7 kW

* 12 month warranty *
