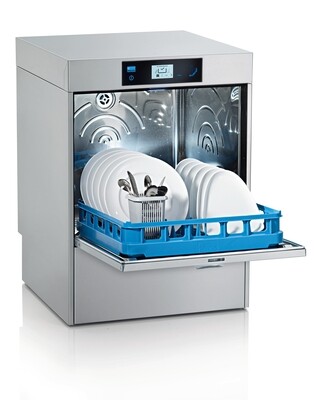

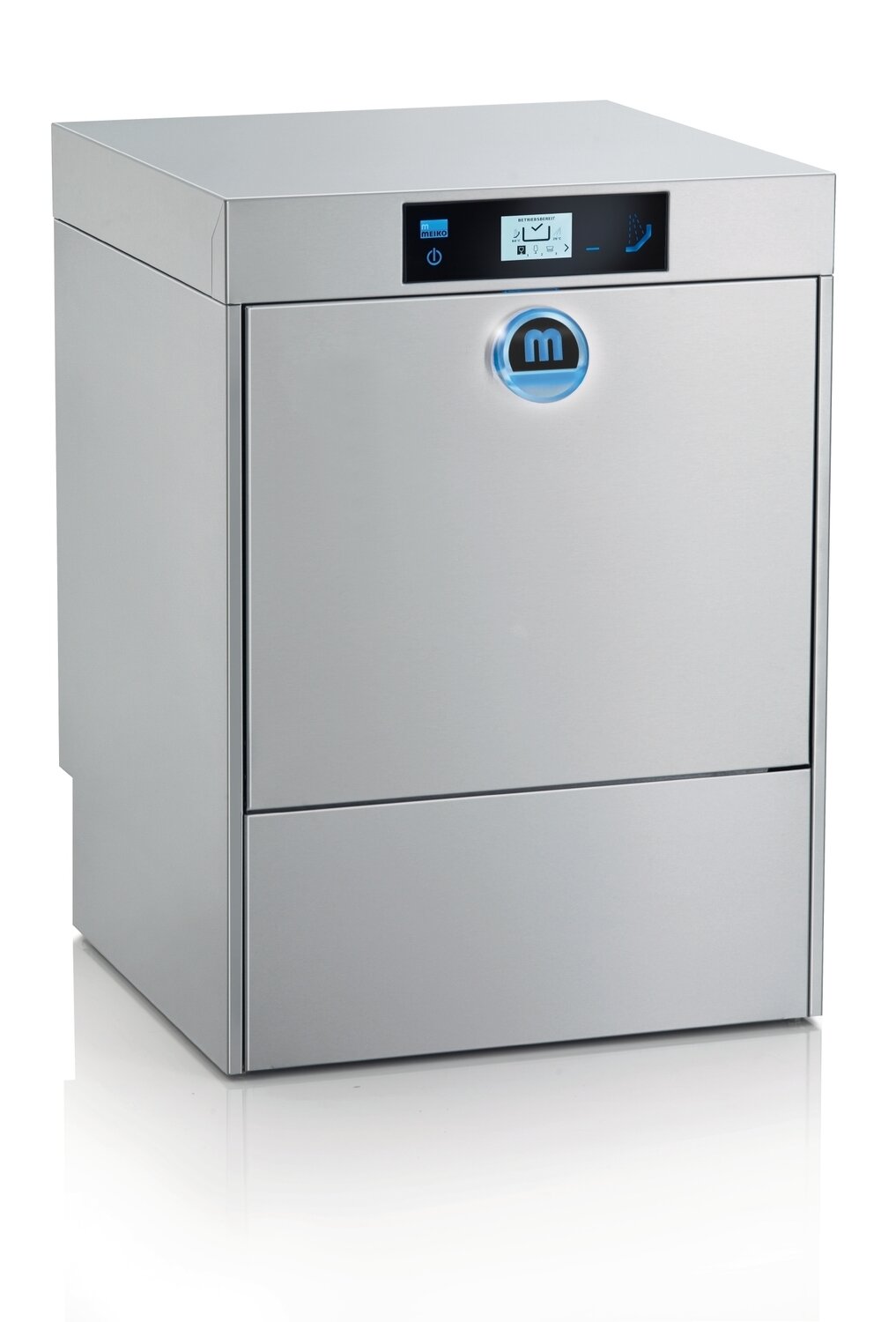

Meiko M-iClean UM+ Undercounter Glasswasher / Dishwasher

Boasting a rack size of 500 x 500 mm and an entry height of 435 mm, this dishwasher for food service also accommodates larger washware and produces perfect results. Thanks to the integrated GiO MODULE and heat recovery there is also no need for manual polishing and no steam in the kitchen.

In addition to plates, cutlery and glasses, do you also have to contend with bulky washware? Even trays are no problem thanks to a size of 600 x 820 mm and an entry height of 435 mm! The smart sensor monitoring reliably keeps track of the wash system and filter, while the integrated GiO-MODULE means your washware comes out shiningand the optimised ComfortAir heat recovery keeps the indoor climate pleasant, washes quickly and leads to increased energy efficiency.

The new generation of M-iClean U glass washers and dishwashers offers the full range of innovative warewashing technology in a compact and elegant design.

- High visual handle with LED illumination and colour-coded status
- Touch TFT colour display made from hygienic safety glass with program progress indicator and Bluetooth interface
- Intuitive operation-blue operating concept, components that need checking after self-clean cycle are blue in colour
- Interior lights up when door is opened
- M-Clean filter-active filter system for removal of food debris from wash tank (includes monitoring of correct positioning and function)
- Stainless steel detergent and rinse aid lines within the body of the machine
- Stainless steel single piece wash and rinse arms to ensure dirty wash water does not drip onto clean wears
- Pressure adjustable wash pump at a push of a button. Low pressure for washing the most delicate glassware, higher pressure for washing coffee cups, saucers etc.

Optional Features
- Stainless Steel Cupboard
- Air Concept heat recovery system

Programme cycle
- 90 / 120 / 240 s
- 90 / 120 / 240 s

Electrical feeding cable
- Alternating current 1N PE 230V 50Hz*
- Total connected load: 2.7 kW
- max. rated current: 14.0 A

Equipment
- Control system MIKE-CPU4
- Bluetooth interface for wireless communication
- Leakage detector
- Soft start
- Boiler safety device
- Automatic self-cleaning when tank is drained
- Roller base 35 mm

Fresh water supply
- Minimum flow pressure 60 kPa / 0.6 bar in front of solenoid valve
- Maximum pressure 500 kPa / 5.0 bar
- Max. supply water temperature 60 C

Boiler
- Contents: 7.9 L
- Heater: 2.00 kW
- Temperature: 83 C
- Tank / boiler locked

Material
- Cladding: 1.4301
- Wash tank: 1.4301
- Boiler: 1.4571

Heat emission
- for 20 programme cycles/h
- total: 2.1 kW
- perceptible: 1.4 kW
- latent: 0.7 kW

* 12 month warranty *
