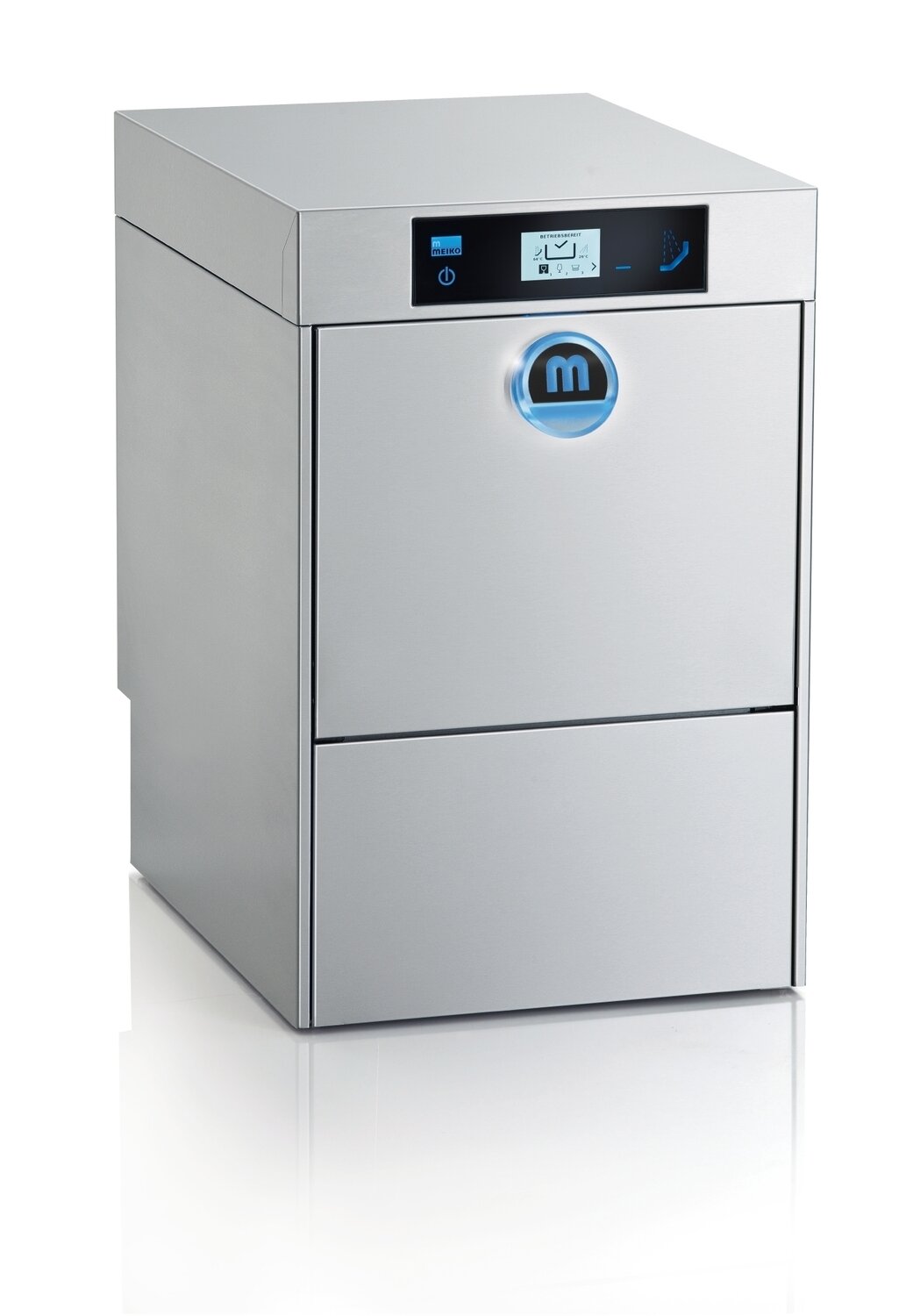

Meiko M-iClean US-GiO Undercounter Glasswasher / Dishwasher

So much performance in such a small machine: with a rack size of 400 x 400 mm, this small dishwashing machine for food service fits under any counter and in every dishwashing area. No steam and no polishing with the M-iClean US glass washer thanks to the integrated GiO module and heat recovery.

The M-iClean US glass and dishwasher for food service is quick to install, quick to loadand it quickly makes dirty dishes hygienically gleaming. With an entry height of 315 mm, the M-iClean US glass washer also accommodates tall beer glasses. With a total size of 460 x 700 mm, it fits in just any corner. The LED indicator handle with its smart colour concept shows what the M-iClean US is currently doing.

The new generation of M-iClean U glass washers and dishwashers offers the full range of innovative warewashing technology in a compact and elegant design.

- High visual handle with LED illumination and colour-coded status
- Touch TFT colour display made from hygienic safety glass with program progress indicator and Bluetooth interface
- Intuitive operation-blue operating concept, components that need checking after self-clean cycle are blue in colour
- Interior lights up when door is opened
- M-Clean filter-active filter system for removal of food debris from wash tank (includes monitoring of correct positioning and function)
- Stainless steel detergent and rinse aid lines within the body of the machine
- Stainless steel single piece wash and rinse arms to ensure dirty wash water does not drip onto clean wears
- Pressure adjustable wash pump at a push of a button. Low pressure for washing the most delicate glassware, higher pressure for washing coffee cups, saucers etc.

Optional Features
- Stainless Steel Cupboard
- Air Concept heat recovery system

Electrical feeding cable
- 3-phase current 3N PE 400V 50Hz*
- Total connected load: 6.8 kW
- max. rated current: 15.0 A

Equipment
- Control system MIKE-CPU4
- Bluetooth interface for wireless communication
- Leakage detector
- Soft start
- Boiler safety device
- Automatic self-cleaning when tank is drained
- Integrated reverse osmosis (with connection and discharge set)
- Roller base 35 mm

Fresh water supply
- Minimum flow pressure 100 kPa / 1.0 bar in front of solenoid valve
- Maximum pressure 500 kPa / 5.0 bar in front of pressure reducer
- Max. supply water temperature 35 C

Flow rate
- total 3.2 l/min (at 15 C inlet temperature and a flow pressure of 200 kPa / 2 bar)
- Permeate 1.5 l/min
- Concentrate 1.7 l/min

Fresh water thresholds
- Temperature cold water min. 1 C to max. 35 C
- Conductivity < 1000 /S/cm
- Total hardness max. 28 dh / 5mmol/l CaCO3
- Free of particles > 10 /m
- Iron < 0.10 mg/l
- Manganese < 0.04 mg/l
- Chlorine < 0.10 mg/l
- Potassium permanganate < 10 mg/l
- Silicic acid < 10 mg/l

Boiler
- Contents: 7.0 L
- Heater: 6.00 kW
- Temperature: 83 C
- Tank / boiler locked

Wash tank
- Filling: 7.5 L
- Heater: 2.00 kW
- Temperature: 60 C

Material
- Cladding: 1.4301
- Wash tank: 1.4301
- Boiler: 1.4571

Heat emission
- for 20 programme cycles/h
- total: 1.4 kW
- perceptible: 1.0 kW
- latent: 0.4 kW

* 12 month warranty *
