Meiko - Pass Through Dishwasher | UPster H 500 M2

SKU UPster H 500 M2
$13,168.32
RRP $14,631.10
Price incl. GST (10%) $1,197.12
1
Product Details
Brand: MEIKO

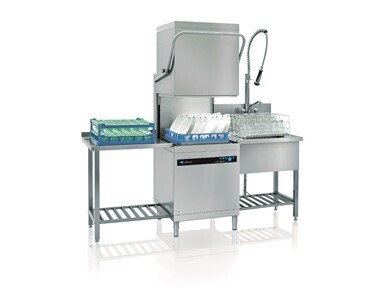

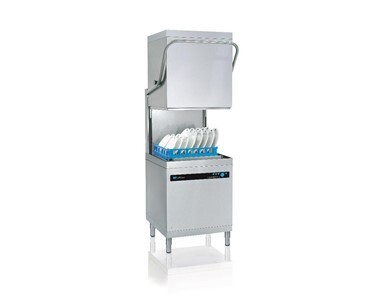

The UPster H 500 M2 hood type dishwashing machine with a rack size of 500 x 500 mm washes at full power. Simply push down the hood handle and presto: the automatic programme start initiates the wash cycle and ensures spotless results.

The UPster H 500 M2 impresses with its optimised wash and rinse system, flawless tank design and a unique filter system. The hood type dishwashing machine offers all the space you'll need with a roomy passing height of 440 mm. Even Euronorm trays, large dishes and tall beer glasses don't pose a problem. They just slide right into the UPster H 500.

  • Leakage protection
    High operating reliability thanks to the water leak detection system, optimum protection of all built-in components.

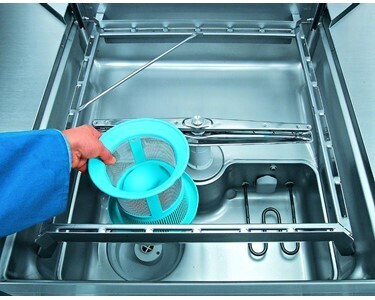

  • Active water filtration
    Excellent washing results thanks to excellent wash water filtering and optimum tank water regeneration with the AktivPlus filter system.

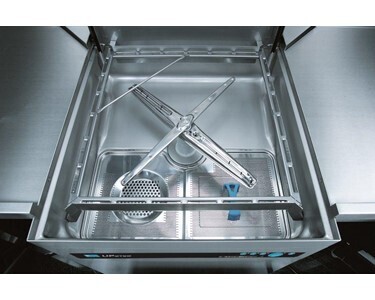

  • Stainless steel wash & rinse arms and dosing pipes
    Robust for heavy commercial use: wash and final rinse arms as well as dosing pipes made of stainless steel.
  • Polish-free wash results with optional GiO module
    The MEIKO GiO MODULE is the reverse osmosis system for spotless wash and drying results. No manual polishing needed.

Benefits:

  • Easy to operate - machine starts automatically when hood handle is pressed down
  • More than enough space for everything large and small with a passing height of 440 mm
  • Digital temperature display ensures hygiene without any guess work
  • Robust for heavy duty commercial use
  • Consistent and reliable wash results thanks to the pressure booster pump
  • Sloped hood ceiling and surrounding drip channel prevent wash water dripping onto dishware
  • Protects glasses and crockery thanks to wash pump with soft start
  • Highly reliable in operation due to water leak detection in base tray
  • Stainless steel wash and rinse systems at top and bottom

Standard Features:

  • Liquid detergent and rinse aid dosing unit with suction lance for use with customer's existing containers
  • Connection kit consisting of supply hose, drain hoses and electrical cable; hoses and cable each extend 1.6 m from the machine (electrical cable permanently attached, hoses come detached)
  • Cold or water connection
  • Three phase (3 NPE, 400 V, 50 Hz)
  • Stainless steel detergent and rinse aid pipes inside the machine
  • Eco-filter system provides brilliant rinsing results thanks to superb wash water filtering and optimum tank water regeneration
  • Booster pump
  • Drain pump

Technical Specifications:

Technical data 400 V
Dimensions (W x H x D) 635 (687) x 1520 x 750 (850) mm
(with hood rod)
Tank heating in kW: 2.0
Boiler heating system in kW:
Fuse 20A
Fuse 25A
7.5
9.0
Pump output in kW: 0.75
Total connected load in kW:
Fuse 20A
Fuse 25A
10.7
12.2
Water consumption in l/rack: 2.6
Tank capacity in l: 22.0
Entry height in mm: 440
Rack size in mm: 500 x 500
Cycle time in seconds: 90/150/210
Theoretical capacity racks/h: 40/24/17
Capacity plates/h: 720/432/306
Capacity glasses/h: 1,440/864/612
