Meiko Point 2 DV 270.2 Pot Washer

SKU DV 270.2 Manual

$47,167.56

RRP ~~$52,408.40~~

Price incl. GST (10%) $4,287.96

Quantity:

Product Details

Brand: MEIKO

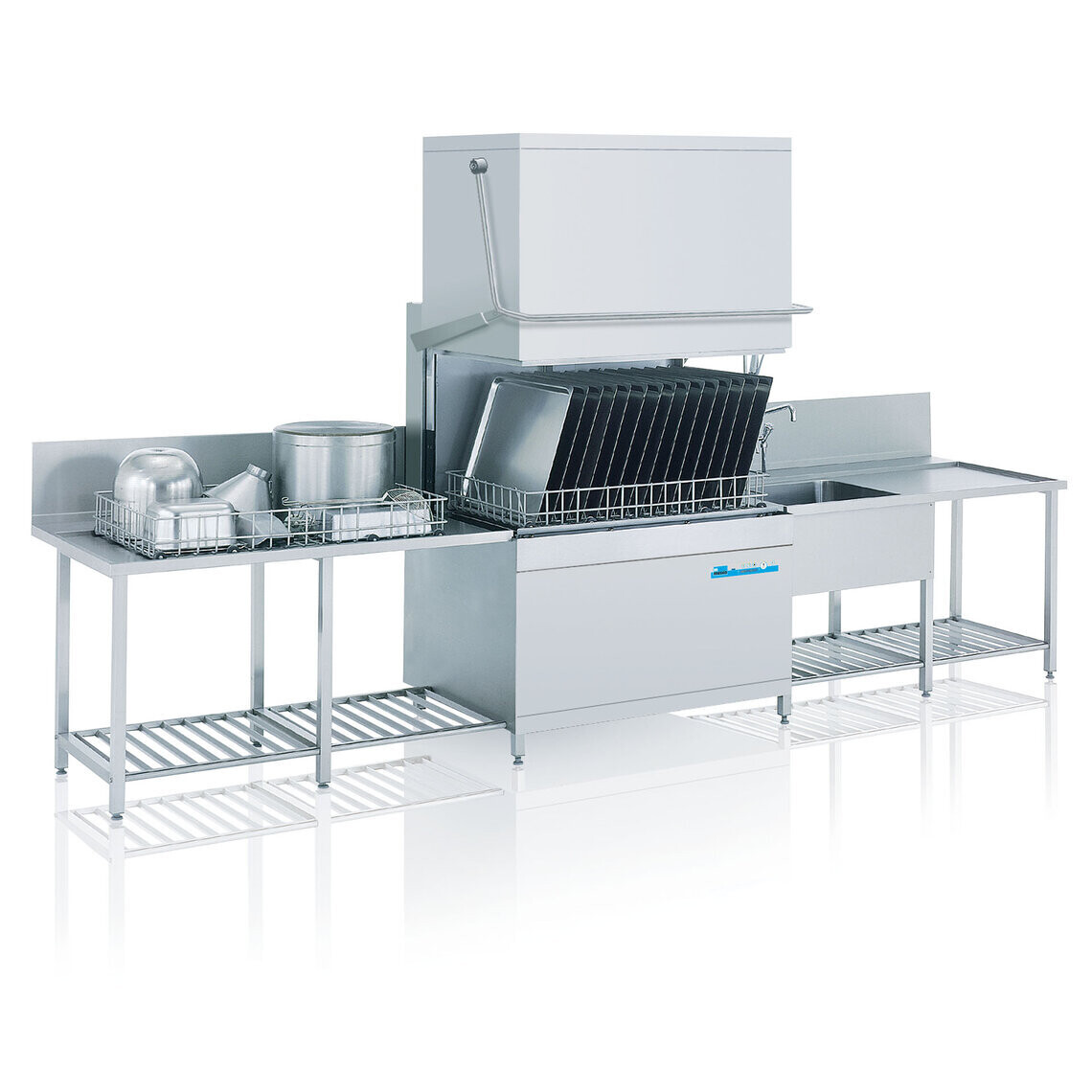

This universal warewasher offers an enormous pass through height of 650mm and can handle all of the bulky washware in your galley.

Advantages:

Easy loading thanks to pass-through height of 650 mm
Sliding tables keep idle time to a minimum
First-class washing results with minimal use of water, energy and chemicals
Double filtration of wash water removes food soil and improves washing efficiency
Oscillating wash arms for complete ware coverage
Easy cleaning due to 150 mm floor clearance
Built according to the latest USPHS standards
NSF/ ANSI 3 tested and listed

Technical Data:

Rack capacity/h (theoretical): 30 / 15 / 7 racks/h

Programme cycle time: 120 / 240 / 480 s

Rack dimension: 1310 x 690 mm

Entry height: 650 mm

Dimensions (W x H x D): 1490 (1600) x 1842 x 995 (1100) mm (with hood rod)

Electrical feeding cable: 3-phase current 3N PE 400V 50Hz*

Total connected load: 22.9 kW

max. rated current: 38.4 A

Protection class of the machine: IP X5

Equipment: - MIKE 2 control

- Infrared interface for wireless communication

- Leakage detector

- Soft start

- Wash arm drive

- Boiler safety device

- Drain pump

- Automatic self-cleaning when tank is drained

- Aqua-Stop system

Fresh water line: Air gap 'AA' in accordance with EN 1717 with booster pump

Fresh water supply: - Minimum flow pressure 60 kPa / 0.6 bar in front of solenoid valve

- Maximum pressure 500 kPa / 5.0 bar

- Max. supply water temperature 60 C

Flow rate: 5.0 l/min

Final rinse water quantity: 9.0 liters/cycle

Boiler: - Contents: 18.0 l

- Heater: 18.00 kW

- Temperature: 83 C

- Tank / boiler locked

Wash tank: - Filling: 100.0 l

- -Heater: 9.00 kW

- Temperature: 60 C

Wash pump: Performance: 2 x 2.20 kW

Dosing of rinse aid: Hose pump (24 V) with time control and suction lance

Material: - Cladding: 1.4301

- Wash tank: 1.4301

- Boiler: 1.4404

Heat emission: - for 15 programme cycles/h

- total: 6.7 kW

- perceptible: 4.5 kW

- latent: 2.2 kW

Ventilation flow rate: 1710 m //h

Steam emission: 3.2 kg/h

Sound level: 69.5 dB(A)

Net weight: 392.0 kg
