Meiko - Rack Conveyor Dishwasher | UPster KS 200

Product Description:

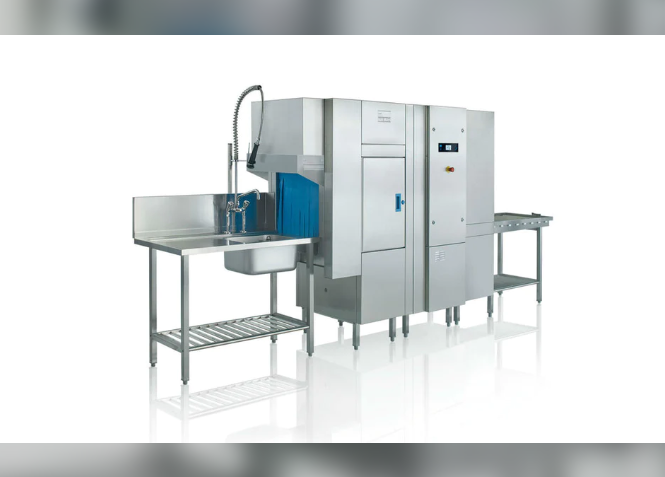

Today's world is more flexible and dynamic than ever, and that's why the Meiko UPster KS 200 rack type dishwashing machines are such a great choice. Offering efficient cleaning performance, user-friendly operation, maximum flexibility, and exceptional value for money, the UPster KS 200 shows its strengths with an additional rinse zone and a major boost in rack capacity - up to 200 racks per hour.

Features:

• Pass Through Dishwasher
  • Outstanding warewashing performance & top-quality cleaning results in a compact package
  • Three choices of rack capacity
  • Intuitive & user friendly and easy to clean/maintain
  • Generous passing height (508mm) makes space to wash even bulky items
  • No extraction system required - machine makes best use of waste energy resources
  • Safety glass display panel at eye level - easy to keep hygienically clean
  • Bluetooth interface - modern innovative communication technology
  • Hinged doors in wash zone provide easy access to wash warms
  • Autotimer - saves water / energy / chemicals
  • System to reduce rinse aid use - reduces rinse aid costs by up to 70%
  • Stainless steel manifold wash systems with 9 wash arms & non-blocking wash nozzles
  • Stainless steel wash pump / impeller / ascending pipe
  • Stainless steel wash & rinse arms
  • Floor clearance 150mm - makes cleaning easier
  • Emergency stop located at ergonomic height
  • Thermally insulated door handles
  • Door monitoring switch - machine switches off when door is opened
  • Device to protect against pollution of potable water ling with pressure pump - maximum operating reliability & hygiene
  • Control cabinet on front of machine - positioned for fast & cost-effective servicing and maintenance
  • Double-walled construction & door insulation - minimises heat & noise emitted by the machine
  • Electrical connections (potential-free contacts) for on-site ventilation
  Specifications:
• DEPTH: 1550mm
• WIDTH: 795mm
• HEIGHT: 1950mm
• WEIGHT: 405kg
• POWER TYPE: 3 Phase

• Rack capacity (DIN)	95 racks/h
  Rack capacity (min.)	150 racks/h
  Rack capacity (max.)	200 racks/h
  Rack dimension	500 x 500 mm mm
  Passing height	508 mm
  Passing width	510 mm
  Final rinse	260 l/h
  Total connected load	28 kW
  Consumption value	19,3 kW
  Machine length	1550 mm
