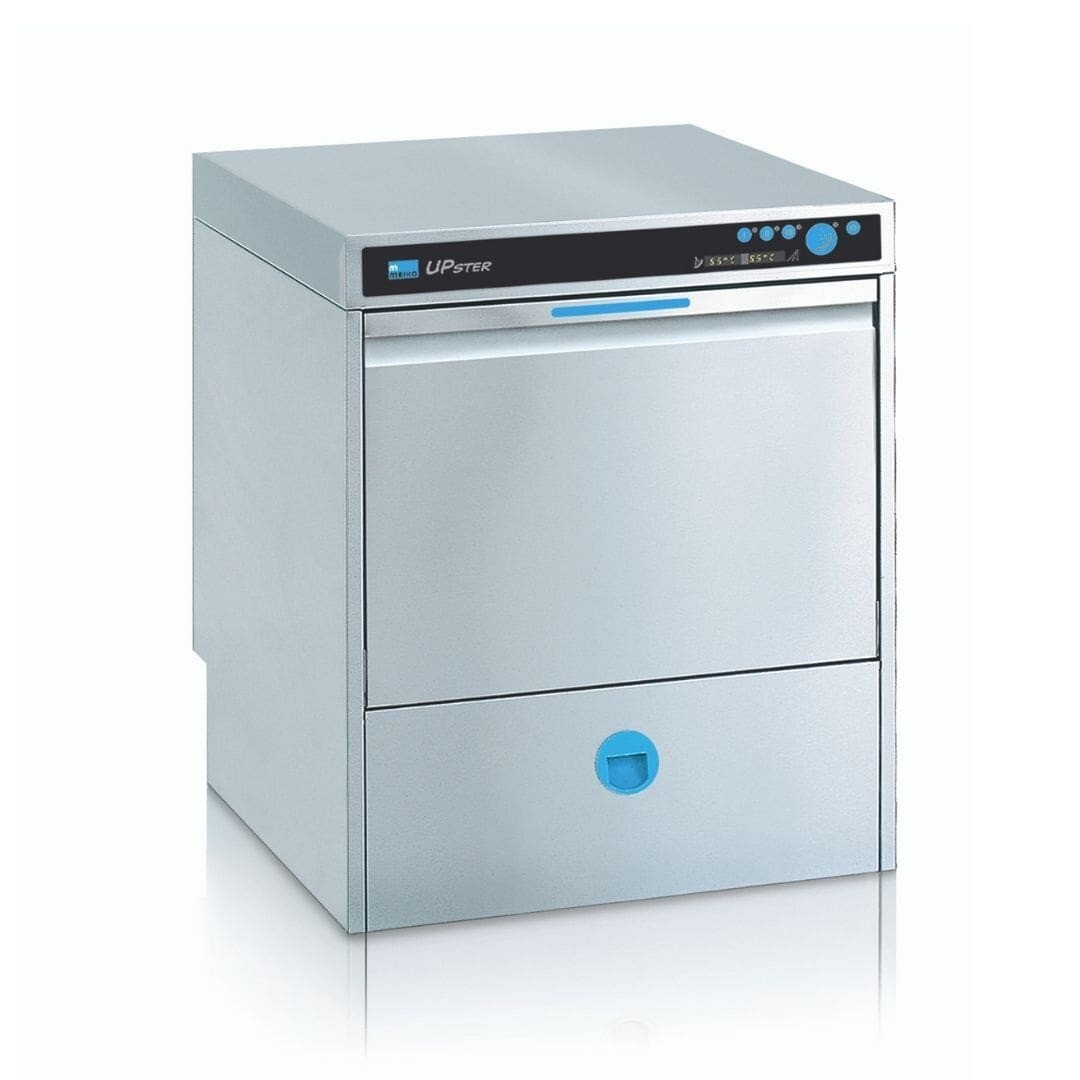

Meiko UPster U500 G M2 GIO Undercounter Glasswasher With GIO

SKU UPster U 500 G M2 GIO

$10,932.24

RRP ~~$12,147.30~~

Price incl. GST (10%) $993.84

Quantity:

Product Details

Brand: MEIKO

The commercial dishwasher UPster U 500 G fits under practically any counter but can still handle the tallest order thanks to a rack size of 500 x 500 mm and an entry height of 315 mm.

The soft start means cocktail glasses and long-stemmed wine glasses get brilliantly clean without any damage.

Technical Data:

Rack capacity/h (theoretical): 40 / 30 / 15 racks/h

Programme cycle: 90 / 120 / 240 s

Rack dimension: 500 x 500 mm (540 x 500)

Entry height: 315 mm

Dimensions: (W x Hmin x D) 600 x 700 x 600 mm

Electrical feeding cable: - 3-phase current 3N PE 400V 50Hz*

- Total connected load: 6.9 kW

- max. rated current: 16.0 A

Local fuse protection: 16 A

Machine protection class: IP X4

Equipment: - Control system MIKE CPU1

- Infrared interface for wireless communication

- Leakage detector

- Soft start

- Boiler safety device

- Drain pump

- AktivPlus wash water filter system

- Automatic self-cleaning when tank is drained

- Gio Module

Fresh water line: - For reverse osmosis: connecting set with stop valve,

- Pressure regulator, filter 10 /m with activated carbon

- Internal: air gap 'AA' in accordance with EN 1717 with booster pump

Fresh water supply: - Minimum flow pressure 100 kPa / 1.0 bar in front of solenoid valve

- Maximum pressure 500 kPa / 5.0 bar in front of pressure reducer

- Max. supply water temperature 35 C

Flow rate: - total 4.3 l/min (at 15 C inlet temperature and a flow pressure of 200

kPa / 2 bar)

- Permeate 2.0 l/min

- Concentrate 2.3 l/min

Fresh water thresholds: - Temperature cold water min. 1 C to max. 35 C

- electrical conductibility < 1000 /S/cm

- Total hardness max. 28 dH / 5 mmol/l CaCO3

- Free of particles > 10 /m

- Iron < 0.10 mg/l

- Manganese < 0.04 mg/l

- Chlorine < 0.10 mg/l (free chlorine)

- Potassium permanganate < 10 mg/l

- Silicic acid < 10 mg/l

Final rinse water quantity: 2.6 liters/cycle

Boiler: - Contents: 7.0 l

- Heater: 6.00 kW

- Temperature: 65 C

- Tank / boiler locked

Wash tank: - Filling: 11.0 l

- Heater: 2.00 kW

- Temperature: 60 C

Wash pump: Performance: 0.55 kW

Dosing of rinse aid Hose pump (24 V) with time control

and suction lance

Detergent dosage: Hose pump (24 V) with time control and suction lance

Material: - Cladding: 1.4301

- Wash tank: 1.4301

- Boiler: 1.4404

Heat emission: - for 20 programme cycles/h total: 2.1 kW

- perceptible: 1.4 kW

- latent: 0.7 kW

Ventilation flow rate: 540 m //h

Steam emission: 1.0 kg/h

Emission sound pressure level at the workplace (LpA): 63 dB
