Meiko 'Upster' Potwasher/Warewasher PF600

SKU UPster PF 600

$20,341.20

RRP ~~$22,600.60~~

Price incl. GST (10%) $1,849.20

Quantity:

Product Details

Brand: MEIKO

The effective, environmentally friendly and economical universal warewahing machine.

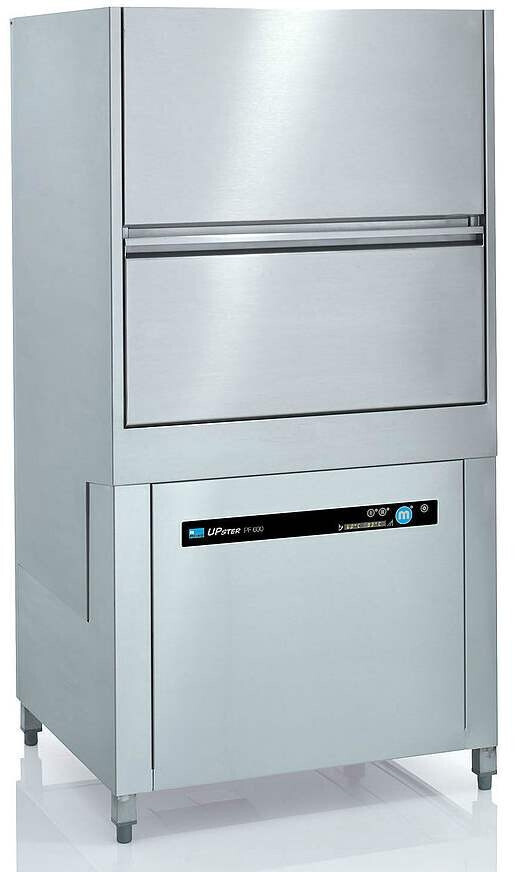

The UPster PF 600 universal warewashing machine is built to tackle the toughest jobs in the wash-up area.
Behind the large door there's plenty of space for washing pots, pans, bowls, trays, kitchen utensils, transport containers and much, much more.

The UPster PF 600 is an effective, environmentally friendly and economical universal warewahing machine for potwash areas in hotels, restaurants and hospitals. Due to the versatile construction, the UPster PF 600 is also most suitable for bakeries, butcher shops, supermarkets and more.

Comes with all the standard equipment and features you would expect from a premium class universal warewashing machine as well as

- Fully electronic control system
- Powerful rotating upper and lower stainless steel wash and rinse systems
- 3 wash programmes with digital temperature indication
- Generous passing height of 600 mm
- Intuitive display symbols and intelligent electronics for easy operation
- Easy-loading, heavy duty stainless steel racks
- Optional rack inserts for various baking trays, bakery and butcher utensils, etc.
- Maintenance-friendly access to all aggregates

Technical data:

Rack capacity/h (theoretical): 30 / 15 / 10 racks/h

Programme cycle*:120 / 240 / 360 s

Rack dimension: 670 x 630 mm

Entry height: 600 mm

Dimensions: (W x Hmin x D) 870 x 1600 x 760 mm

Electrical feeding cable: 3-phase current 3N PE 400V 50Hz*

Total connected load: 11.2 kW

max. rated current: 18.5 A

Local fuse protection: 20 A

Protection class of the machine: IP X4

Equipment: - MIKE control

- Infrared interface for wireless communication

- Drain pump

- Boiler safety device

- Automatic self-cleaning when tank is drained

Fresh water line: Air gap 'AA' in accordance with EN 1717 with booster pump

Fresh water supply: - Minimum flow pressure 60 kPa / 0.6 bar in front of solenoid valve

- Maximum pressure 500 kPa / 5.0 bar

- Max. supply water temperature 60 C

Flow rate: 4 l/min

Final rinse water quantity: 4 liters/cycle

Boiler: - Contents: 10.5 l

Heater:9.00 kW

- Temperature: 83 C

- Tank / boiler locked

Wash tank: - Filling: 60 l

- Heater: 6.00 kW

- Temperature: 60 C

Wash pump: Performance: 2.00 kW

Dosing of rinse aid: Hose pump (24 V) with time control and suction lance

Detergent dosage: Hose pump (24 V) with time control and suction lance

Material: - Cladding: 1.4301

- Wash tank: 1.4301

- Boiler: 1.4404

Heat emission: - for 15 programme cycles/h

- total: 2.8 kW

- perceptible: 1.9 kW

- latent: 0.9 kW

Ventilation flow rate: 710 m //h

Steam emission: 1.3 kg/h

Sound level: 68 dB(A)

Net / gross weight: 165.0 kg / 190.0 kg (standard packaging)

Packaging dimensions (W x H x D): 1050 x 1750 x 1000 mm (standard packaging)
