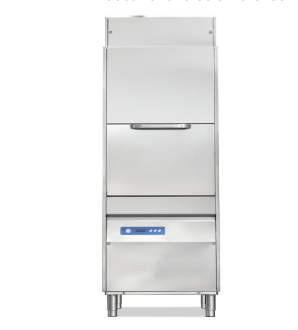

Rhima RP-1 HR pot and utensil washer

SKU RP-1HR
$18,697.80
Price incl. GST (10%) $1,699.80
1
Product Details

The RP-1 pot and utensil washer heat recovery unit reduces the exhaust air temperature by more than half so that the entire humidity volume is cut down by approx. 10% of the RP-1 without a heat recovery unit. This permanently improves the operators' comfort.

Heat Recovery Unit means the moist air is drawn directly out of the machine when the door is closed, and used for pre-heating the cold water supplied up to around 50 C. As a result, the energy required to reach the final rinse temperature (approx. 85 C) is dramatically reduced. With the RP-1 you can save 4.85 kw/h.

Benefits:

Built in booster heater and thermostop

Double skinned for efficiency and noise reduction

Built-in detergent/rinse aid dispensers

Gravity drained

Heat recovery unit needs hot and cold water connection

RP-1 HR Features:

Power supply: 415V 50 Hz
Total power: 8KW
Total current: 3 X 12 Amp
Wash tank capacity: 50 ltrs
Water consumption (per cycle): 4.2 ltrs
Rinsing temp (approx): 85 C
Rack size: 550mm x 665mm
Tallest washable item: 805mm
Weight (empty): 165 kg
Drain hose diameter: 32mm
Water connection (Hot & Cold): 3/4 hose
